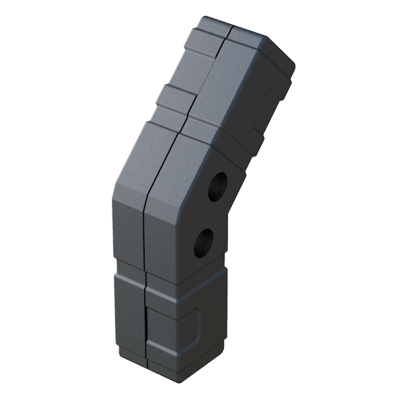

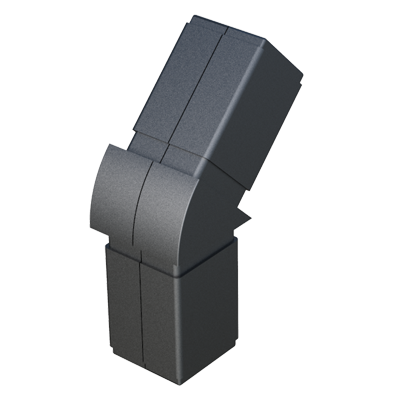

Part numbers and dimensions of 2 tubes angle connector with nut cavities and visible union
| Reference | For Tube |
Tube Thickness |
L |
Angle (A) |
Nut Spot (SW) / Metric (M) |
More Info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02300400179 | 25 x 25 | 1,50 | 31,00 | 135° | SW 13 |
