Our connector/glide LJEV made of PA6 “Polyamide 6” for square tubes has 2 cavities to be able to place hexagonal nuts according to the user's needs.
Depending on the placement of the part, the axis in a vertical position is suitable for placing a leveler or wheel while the horizontal axis is suitable for connect a cross member “structural element” . See video.
We supply the part without nuts, with 1 nut on top , with 1 nut on the bottom , or with 2 nuts .
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L / K
E / H
Nut Spot (SW) / Metric (M)



More
Info.
02300900100 20 x 20 1,50 41,00 / 2,00 10,00 / 25,00 SW13
02300900101 20 x 20 2,00 41,00 / 2,00 10,00 / 27,00 SW13
02300900102 25 x 25 1,50 42,00 / 2,00 12,50 / 28,00 SW13
02300900103 25 x 25 1,50 40,00 / 2,00 12,50 / 31,00 SW17

If you are interested in our family LJEV, you may be interested in these families as well:

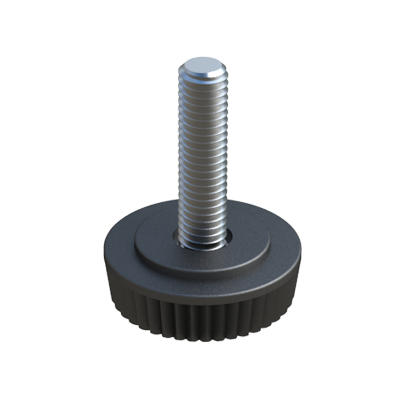

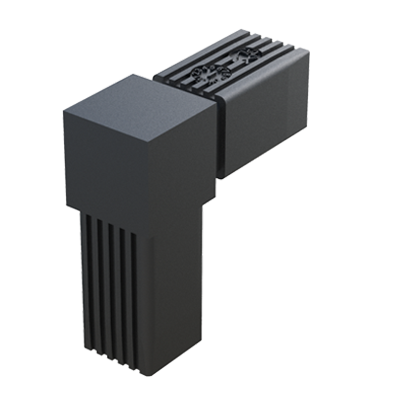

Our adjustable foot has a knurled base for easier handling.   Our adjustable foot has a decorative round base.   Our adjustable foot has a knurled base for easier handling.   Our elbow connector has been designed in order to connect 2 square tubes. It is supplied without internal metal core or with the internal core in steel, in stainless steel or in zinc coated steel.   Our “Y” connector, made up of two parts, allows you to join <b>3 square tubes</b> and is supplied <b>with</b> or <b>without a Steel </b> (S), <b>Zinc-Coated Steel</b> (ZCS) or <b>Stainless Steel</b> (SS) core. <br>
Using a correct construction and weight distribution, it allows to build frames subjected to <b>low - medium</b> or <b>high</b> static loads - depending on the reference.
To avoid possible contact corrosion, in case you want to reinforce the connector by means of rivets, pins, etc., drilling into the steel core should be avoided.
The <b>Nylon</b> (PA6) used is highly resistant and gives the connector a long useful life. <br>

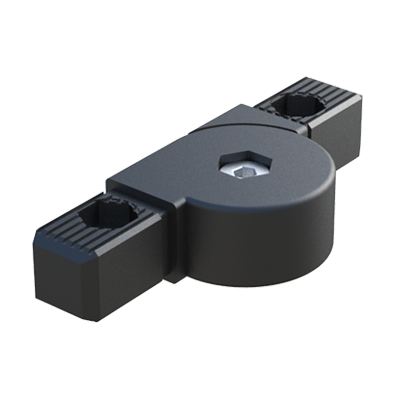

Contact our sales office if measures or any other product specification is not within the standard program.   Our hinge 2-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º.
