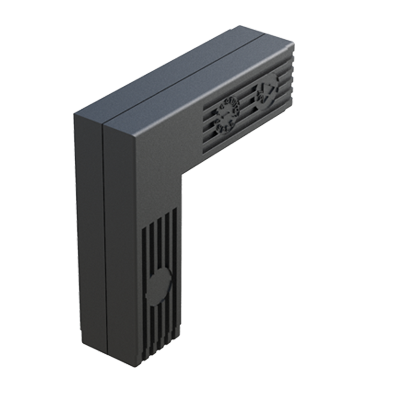

Our elbow connector has been designed in order to connect 2 square tubes. It is supplied without internal metal core or with the internal core in steel, in stainless steel or in zinc coated steel.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

THCLB
THCLB

Reference
For Tube
Tube Thickness
L
H



More
Info.
00201206440 20 x 20 1,50 36,00 20,00
00201206449 20 x 20 2,00 36,00 20,00
00201206451 25 x 25 1,50 52,00 25,00
02300400145 30 x 30 1,50 48,00 30,00
00201206459 30 x 30 2,00 47,00 30,00
02300400146 30 x 30 4,50 49,00 30,00
