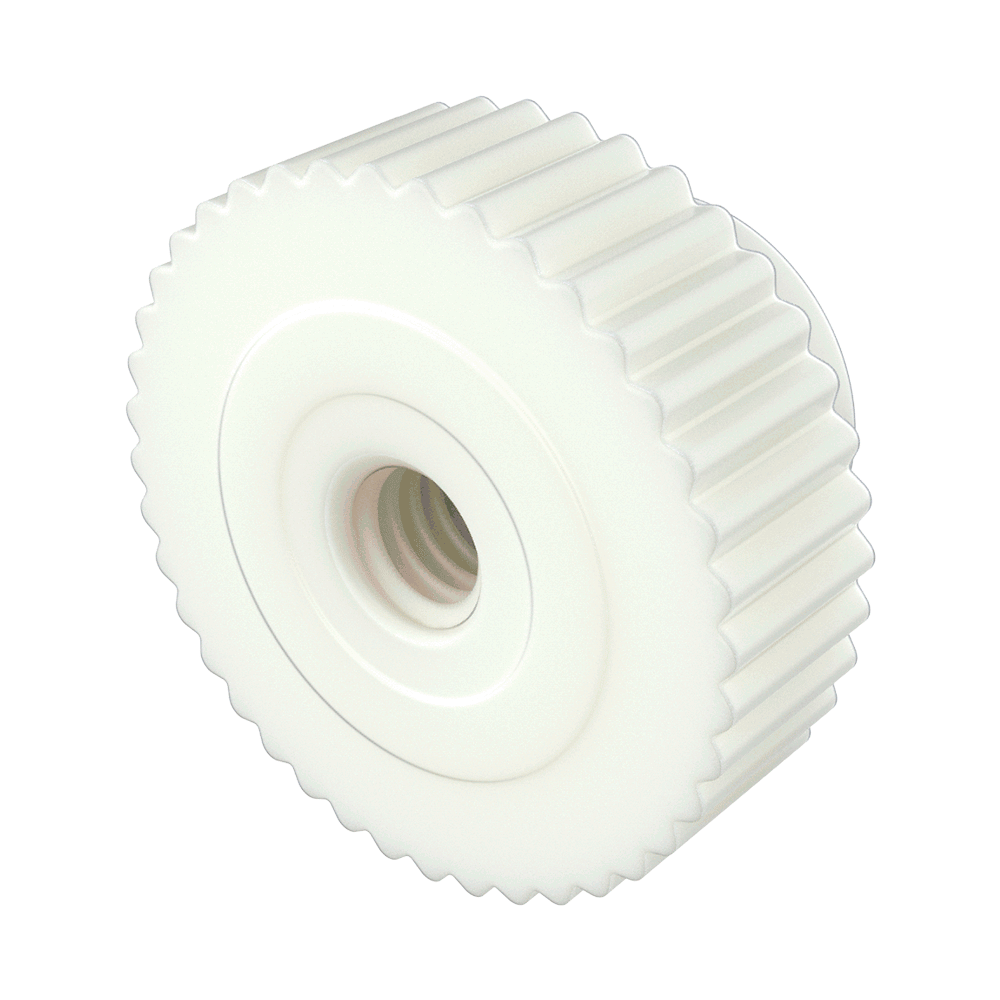

Our knurled head nuts MTCG, similar to DIN 467, are available in PA66 and PA6GF30, offering lightweight, insulating, and resistant solutions for various industrial sectors.

Materials and Properties

  • PA66: engineering thermoplastic with high rigidity, good toughness, and excellent dimensional stability. Offers good resistance to wear, impact, and fatigue. Suitable for continuous use up to 100 °C. Resistant to oils, greases, hydrocarbons, and aliphatic solvents.
  • PA6GF30: PA6 reinforced with 30% glass fiber, significantly increasing its rigidity, mechanical and thermal resistance. Suitable for continuous use up to 130 °C. Excellent resistance to impact, thermal aging, and creep under load. Good chemical resistance to oils, greases, fuels, and many organic solvents.

  RAL colors manufactured

  Possible to get dyed colors

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:

MTCG
MTCG

Reference
Metric Thread
A
B
C
Similar DIN



More
Info.
03100300600 M3 12,00 7,00 3,50 DIN 466
00100101104 M4 10,80 8,00 3,50 DIN 466
03100300601 M4 12,00 7,00 3,50 DIN 466
03100300603 M4 16,00 8,00 4,50 DIN 466
03100300602 M5 14,00 7,00 3,50 DIN 466
03100300604 M5 16,00 8,00 4,50 DIN 466
03100300605 M5 19,30 11,30 6,15 DIN 466
03100300606 M6 16,00 8,00 4,50 DIN 466
03100300607 M6 19,00 6,00 6,00 DIN 466

If you are interested in our family MTCG, you may be interested in these families as well:

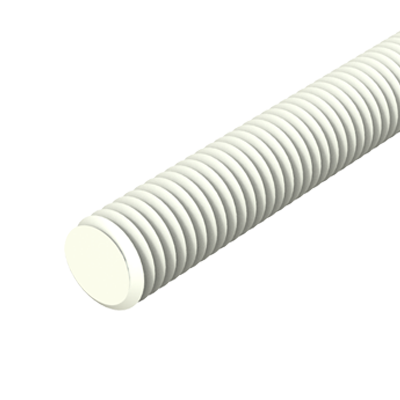

<p>Screws made of <strong>PA66</strong> and <strong>PA66GF30</strong>, high-quality technical materials that combine excellent mechanical strength, good thermal stability, and suitable chemical resistance. They offer a lightweight and reliable alternative to metal screws in a wide range of industrial applications.</p> <p><strong>Main properties</strong><br> • <strong>Thermal:</strong> PA66 up to 100 °C, PA66GF30 up to 120 °C continuous use<br> • <strong>Mechanical:</strong> high strength, improved stiffness with glass fiber, good dimensional stability<br> • <strong>Chemical:</strong> good resistance to oils, greases, hydrocarbons and common solvents</p> <p><strong>Advantages over metal screws</strong><br> • Lower weight without compromising strength<br> • Corrosion resistant, even in aggressive environments<br> • Electrically and thermally insulating<br> • Non-magnetic, non-conductive and spark-free<br> • Absorb vibrations and reduce noise<br> • Less maintenance and longer durability under harsh conditions</p> <p>Ideal for sectors such as electrical, electronics, automotive, construction, HVAC and general industry.</p>   <p>Screws made of <strong>PA66</strong> and <strong>PA66GF30</strong>, high-quality technical materials that combine excellent mechanical strength, good thermal stability, and suitable chemical resistance. They offer a lightweight and reliable alternative to metal screws in a wide range of industrial applications.</p> <p><strong>Main properties</strong><br> • <strong>Thermal:</strong> PA66 up to 100 °C, PA66GF30 up to 120 °C continuous use<br> • <strong>Mechanical:</strong> high strength, improved stiffness with glass fiber, good dimensional stability<br> • <strong>Chemical:</strong> good resistance to oils, greases, hydrocarbons and common solvents</p> <p><strong>Advantages over metal screws</strong><br> • Lower weight without compromising strength<br> • Corrosion resistant, even in aggressive environments<br> • Electrically and thermally insulating<br> • Non-magnetic, non-conductive and spark-free<br> • Absorb vibrations and reduce noise<br> • Less maintenance and longer durability under harsh conditions</p> <p>Ideal for sectors such as electrical, electronics, automotive, construction, HVAC and general industry.</p>   MVR slotted metric threaded studs (similar to DIN 551), are manufactured in <b>PA66</b>, an ideal material for most applications, offering excellent resistance to chemical products (see technical data sheet), high level of dielectric strength, does not rust and prevents damage caused by overvoltage. <br>   <p>Our flanged washers <strong>TI</strong>, made of <strong>PA66</strong>, are designed to offer excellent mechanical, electrical, and thermal performance in demanding industrial applications.</p> <h4>PA66 Properties</h4> <ul style='margin-left:20px'> <li><strong>Thermal resistance:</strong> continuous use up to 100–110 °C</li> <li><strong>Mechanical strength:</strong> high rigidity, hardness, and dimensional stability</li> <li><strong>Electrical insulation:</strong> excellent dielectric behavior</li> <li><strong>Chemical resistance:</strong> good resistance to oils, greases, hydrocarbons, and common solvents</li> <li><strong>Durability:</strong> high wear resistance, low friction, and good aging resistance</li> </ul> <p><strong>PA66</strong> is a technical polyamide ideal for structural components that must be lightweight yet strong, with electrical insulation and reliable performance under thermal and chemical stress.</p>   <p>Our <strong>TU</strong> washers are available in <strong>LDPE</strong>, <strong>PA6</strong>, <strong>PA66</strong>, and <strong>PA6GF30</strong>, offering lightweight, insulating, and durable solutions for various industrial sectors.</p> <h4>Materials and properties</h4> <ul style='margin-left:20px'> <li><strong>LDPE:</strong> up to 70 °C, flexible, insulating, resistant to mild agents.</li> <li><strong>PA6:</strong> up to 100 °C, good strength and thermal balance.</li> <li><strong>PA66:</strong> greater rigidity and dimensional stability.</li> <li><strong>PA6GF30:</strong> 30% glass fiber reinforced, excellent stiffness and heat resistance up to 130 °C.</li> </ul> <p>All materials provide good electrical insulation and chemical resistance to oils, greases, and common solvents. Ideal for electrical, mechanical, and insulation applications.</p>
