2 tubes angle connector with visible union

Products

Our connector has been designed for square tubes. It has a 45º angle.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	For Tube	Tube Thickness	L	Angle (A)									More Info.

02300400350

25 x 25

1,50

50,00

45º

If you are interested in our family THCZZ, you may be interested in these families as well:

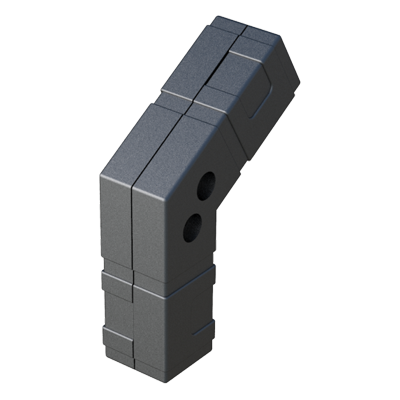

Our connector has been designed for square tubes. It has a 120º angle.

<p>Our <b>THCLQ articulated connector</b> enables the connection of <b>2 square tubes</b> in different positions through a multi-part system designed for angular adjustment.</p>

<p>The articulation system provides two continuous adjustment ranges: from <b>0° to 190°</b> or from <b>45° to 200°</b>, depending on the system characteristics. The connector incorporates 2 conical chambers for housing hexagonal nuts. For this purpose, the tube profiles must be drilled in the corresponding position.</p>

<p>The articulation system offers two operating modes:</p>

<p><b>Type 1</b>: Free rotation movement.</p>

<p><b>Type 2</b>: Rotation movement with 15° internal serration.</p>

<p>The body material can be <b>PA6 (polyamide 6)</b> or <b>PA6GF30 (polyamide 6 + 30% glass fibre)</b>, depending on the reference. Glass fibre reinforcement in PA6GF30 versions provides increased rigidity as well as improved dimensional and thermal stability.</p>

<p><i>If the required size or any other specification is not included in our standard range, please contact our sales office.</i></p>

<p><i>*Reference 02300400165 is supplied unassembled.</i></p>

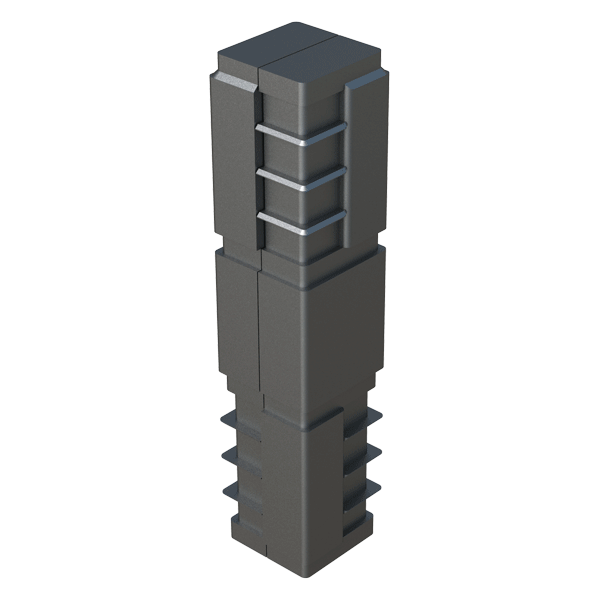

Our straight connector has been designed in order to connect 2 square tubes. It is supplied without internal metal core or with an internal steel core.

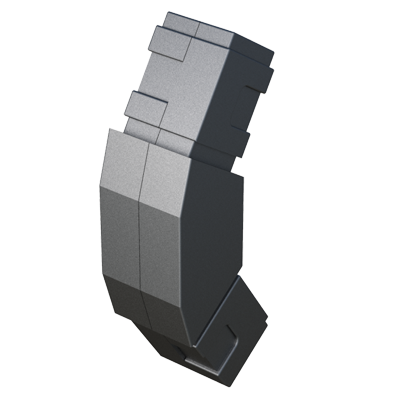

Our connector has been designed for square tubes. It has a 135º angle.
