Description and features
Our ALL-FIT MPF membrane cable grommets are used in a wide range of applications, especially to protect cables, pipes and hoses from sheet metal edges or from sharp or unfinished edges of the components where they are installed.These adjustable bushings feature a design with flexible tabs that facilitate the insertion of multiple cables, absorb impacts and vibrations, and ensure optimal protection and insulation. In addition, they offer resistance to chemical agents and good electrical properties.
These grommets are equipped with locking tabs that snap into the holes by finger pressure and adapt to the maximum panel thickness, remaining firmly secured to the panel. They are available in various sizes for hole diameters from 12.70 mm to 76.20 mm.
They are manufactured from heat-stabilized Polyamide 66 (PA66) with a maximum operating temperature of 105°C and supplied in black. They can also be supplied in white and other RAL colors; to check the required minimum order quantity, please contact our sales office.
Product compliant with UL (Underwriters’ Laboratories) requirements and certified by CSA (Canadian Standards Association), in accordance with applicable safety and quality standards.
Product images and technical drawings

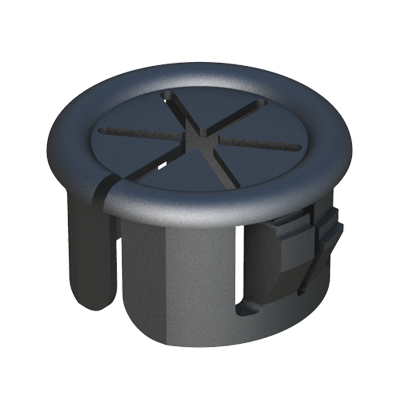

Product view
Technical drawing
Video
Part numbers and dimensions of Universal bushing
| Reference | Hole size (A) |
Maximum panel thickness (G) |
Max. Cable diameter |
L |
D |
More Info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02010000120 | 12,70 | 1,60 | 7,60 | 6,00 | 15,20 | ||||||||
| 02010000100 | 12,70 | 3,20 | 7,60 | 9,80 | 15,20 | ||||||||
| 02010000132 | 12,70 | 6,40 | 7,60 | 13,80 | 15,20 | ||||||||
| 02010000116 | 15,90 | 1,60 | 11,10 | 6,20 | 18,50 | ||||||||
| 00101000052 | 15,90 | 3,20 | 11,10 | 10,30 | 18,00 | ||||||||
| 02010000101 | 15,90 | 3,20 | 11,10 | 10,00 | 18,70 | ||||||||
| 02010000135 | 15,90 | 6,40 | 11,10 | 14,00 | 18,30 | ||||||||
| 02010000102 | 19,00 | 3,20 | 12,70 | 9,90 | 21,40 | ||||||||
| 00101000053 | 19,00 | 3,20 | 12,70 | 9,90 | 22,20 | ||||||||
| 02010000137 | 19,00 | 6,40 | 12,70 | 12,70 | 21,25 | ||||||||
| 02010000117 | 19,10 | 1,60 | 12,70 | 6,40 | 21,80 | ||||||||
| 02010000103 | 20,60 | 3,20 | 12,70 | 9,90 | 22,60 | ||||||||
| 00101000054 | 20,60 | 3,60 | 12,70 | 10,30 | 22,60 | ||||||||
| 02010000113 | 22,20 | 1,60 | 14,20 | 6,40 | 23,80 | ||||||||
| 00101000055 | 22,20 | 3,20 | 14,20 | 11,50 | 23,80 | ||||||||
| 02010000104 | 22,20 | 3,20 | 14,30 | 11,50 | 23,80 | ||||||||
| 02010000142 | 22,20 | 6,40 | 14,30 | 14,00 | 23,80 | ||||||||
| 02010000114 | 25,40 | 1,60 | 19,00 | 6,40 | 27,00 | ||||||||
| 00101000056 | 25,40 | 3,20 | 19,00 | 11,50 | 26,90 | ||||||||
| 02010000105 | 25,40 | 3,20 | 19,00 | 11,50 | 27,00 | ||||||||
| 02010000145 | 25,40 | 6,40 | 19,00 | 14,00 | 27,00 | ||||||||
| 01801100600 | 27,60 | 3,20 | 22,40 | 11,30 | 30,80 | ||||||||
| 02010000115 | 27,80 | 1,60 | 20,60 | 6,40 | 29,40 | ||||||||
| 00101000057 | 27,80 | 3,20 | 20,60 | 11,50 | 29,30 | ||||||||
| 02010000106 | 27,80 | 3,20 | 20,60 | 11,50 | 29,40 | ||||||||
| 02010000148 | 27,80 | 6,40 | 20,60 | 14,00 | 29,40 | ||||||||
| 02010000112 | 30,20 | 3,20 | 24,10 | 11,50 | 31,80 | ||||||||
| 00101000124 | 31,75 | 3,20 | 22,20 | 11,50 | 34,50 | ||||||||
| 02010000107 | 31,80 | 3,20 | 25,80 | 11,50 | 33,40 | ||||||||
| 02010000108 | 34,90 | 3,20 | 25,40 | 11,50 | 37,80 | ||||||||
| 02010000152 | 34,90 | 6,40 | 25,40 | 14,30 | 37,80 | ||||||||
| 02010000109 | 38,10 | 3,20 | 26,90 | 11,40 | 40,90 | ||||||||
| 02010000154 | 38,10 | 6,40 | 26,90 | 14,30 | 40,90 | ||||||||
| 02010000110 | 44,50 | 3,20 | 34,90 | 11,80 | 47,50 | ||||||||
| 02010000118 | 50,80 | 3,20 | 41,60 | 12,40 | 54,00 | ||||||||
| 02010000111 | 63,50 | 6,40 | 50,00 | 19,00 | 66,80 | ||||||||
| 02010000119 | 76,20 | 6,40 | 62,70 | 19,00 | 80,00 |
