Our LHVRB leveling foot with PA6 (“Nylon”) base has a inclination thread that ranges from 18º to 26º depending on the reference.
The base is available with a glossy black and matt black surface.
Download our generic drawing to consult the axial static load of each reference.
We have variants with allen housing in the upper part of the thread. You can request more information by contacting our commercial department.
In case you are interested in the variant with hexagonal nut, please visit our family LHVRA .
  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

LHVRB
LHVRB

Reference
Metric Thread (M)
L
D
H
Max. Tilting degree (W)



More
Info.
02300500000 M8 18,00 26,00 10,00 26º
02300500002 M8 18,00 31,00 11,00 20º
02300500007 M8 18,00 40,00 12,00 20º
02300500011 M8 18,00 46,00 13,00 20º
02300500015 M8 18,00 56,00 13,00 20º
00301200325 M8 27,00 26,00 10,00 26º
00301200326 M8 27,00 31,00 12,00 20º
02300500008 M8 27,00 40,00 12,00 20º
00301200337 M8 27,00 46,00 13,00 20º
02300500016 M8 27,00 56,00 13,00 20º
02300500018 M8 27,00 80,00 15,00 19º
02300500001 M8 30,00 26,00 10,00 26º
02300500005 M8 30,00 31,00 11,00 20º
02300500009 M8 30,00 40,00 12,00 20º
02300500012 M8 30,00 46,00 13,00 20º
02300500017 M8 30,00 56,00 13,00 20º
02300500019 M8 30,00 80,00 15,00 19º
02300500010 M10 25,00 40,00 12,00 18º
02300500013 M10 25,00 46,00 13,00 22º
00301200343 M10 25,00 55,50 13,00 18º
02300500014 M10 73,00 49,00 12,20 25º

If you are interested in our family LHVRB, you may be interested in these families as well:

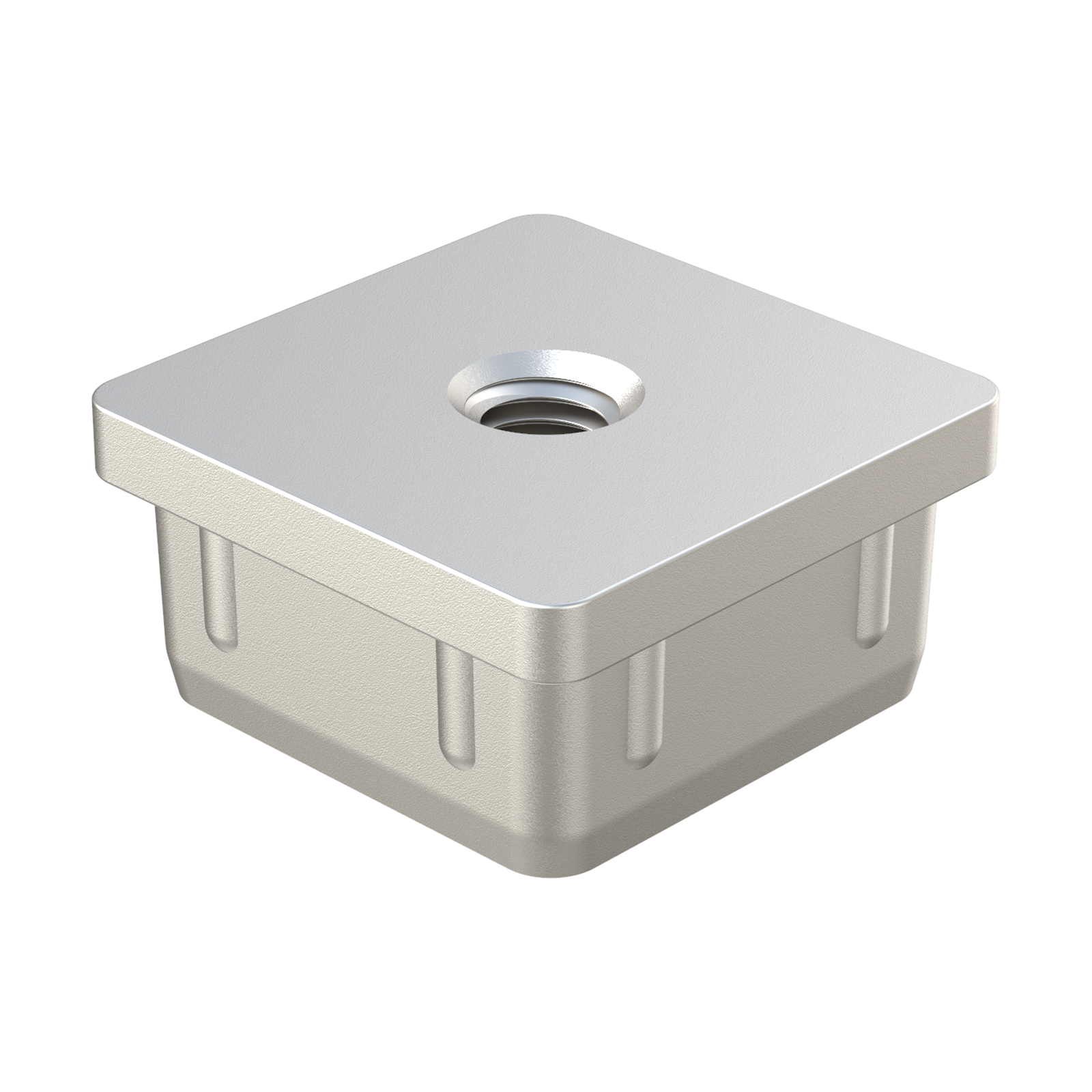

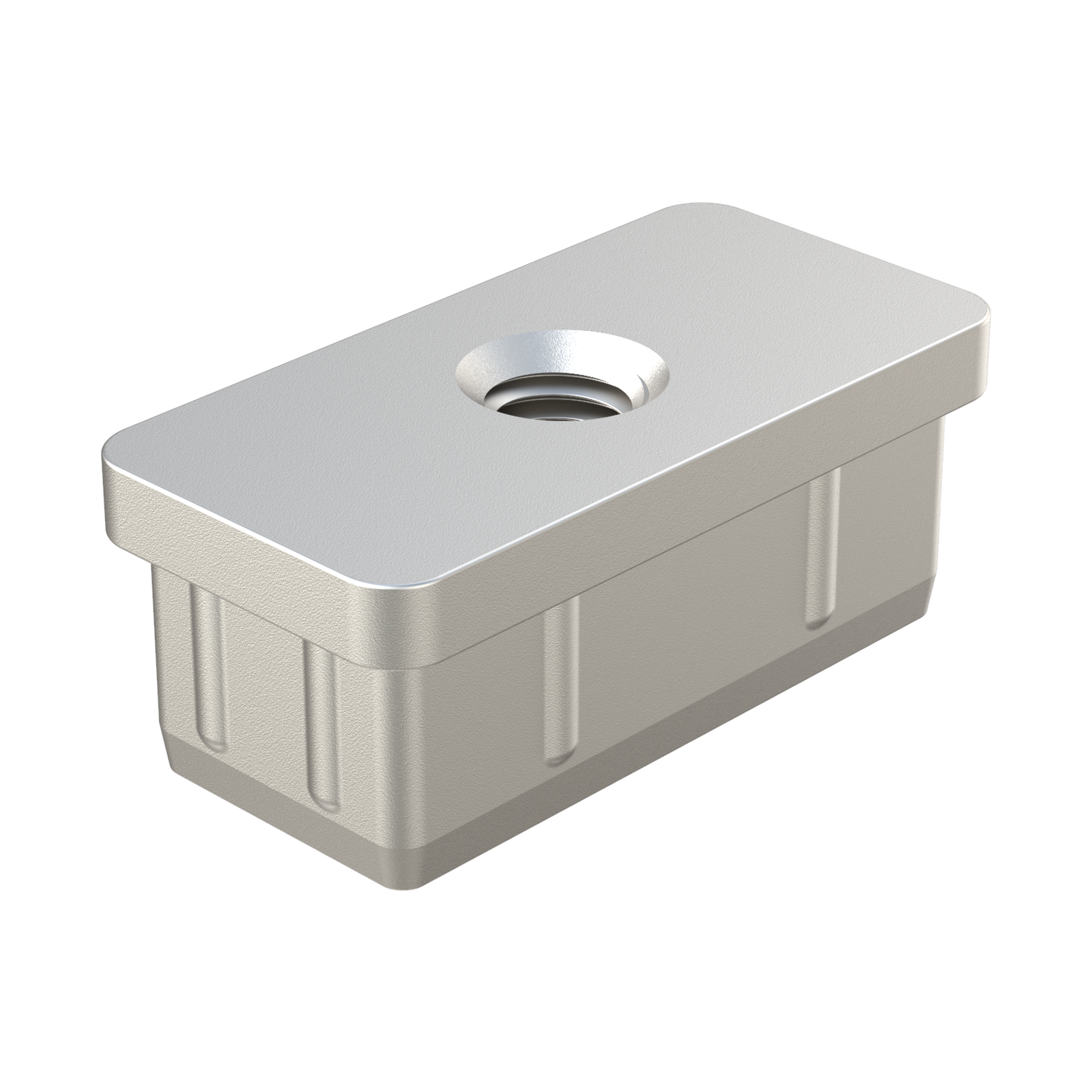

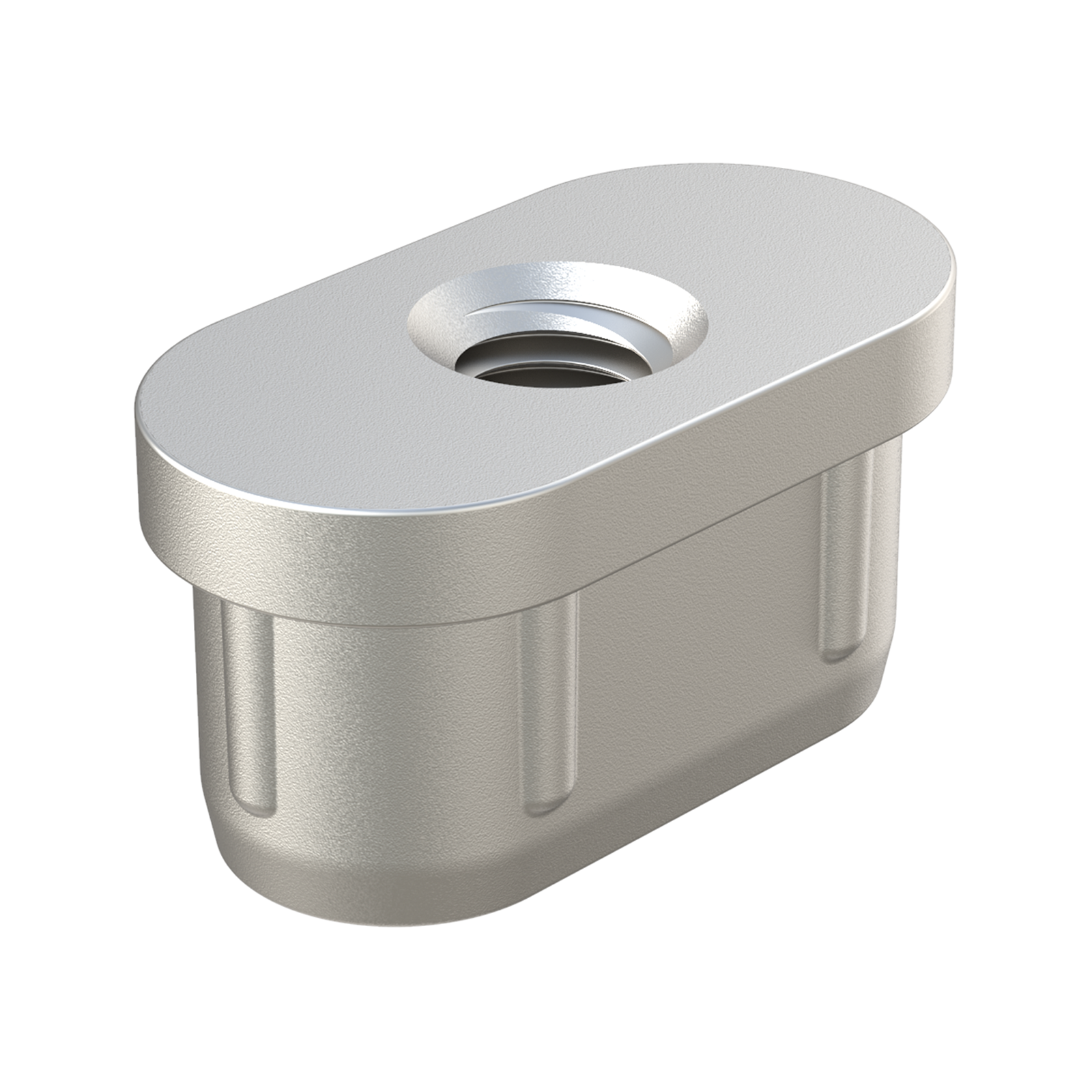

Our <b>reinforced and threaded</b> LJMZ inserts for rectangular tubes are made of <b>Zamak</b>. <b>Type 1</b> references have a rounded head and interior reinforcing ribs, which provide greater resistance to the piece, while <b>Type 2</b> references have a head without a radius and do not have interior reinforcement ribs. <br><br> Available for: Square tubes: <b><a href=' https://www.isc-sl.com/square-threaded-and-reinforced-tube-insert/ljm/'target='_top'>LJM</ a></b> / Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top' >LJMR</a></b> / Oval tubes: <b><a href='https://www.isc-sl.com/oval-threaded-reinforced-tube-insert/ljmo/'target ='_top'>LJMO</a></b>   Our threaded tube insert is manufactured in ZCS. It is also available for square tubes, please visit our family LJMS.   Our reinforced pipe ends with thread for round tubes have been designed for applications that must be highly resistant. The threaded insert is made of Nickel Plated Brass. It is also available in Stainless Steel. For other dimensions that do not appear in the list, contact us.   Our round reinforced tube inserts allow to assemble structures of tubes on levelling feet quickly. It has a nickel-plated brass threaded insert inside, which has been inserted during the injection process. It is also available for square tubes: JTPOA.   Our <b>reinforced and threaded</b> LJM inserts for square tubes are made of a <b>Zamak</b>. <b>Type 1</b> references have a rounded head and interior reinforcing ribs, which provide greater resistance to the piece, while <b>Type 2</b> references have a head without a radius and do not have interior reinforcement ribs. <br><br> Available for: Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top'>LJMR</ a></b> / Rectangular tubes: <b><a href=' https://www.isc-sl.com/rectangular-threaded-and-reinforced-tube-insert/ljmz/'target='_top' >LJMZ</a></b> / Oval tubes: <b><a href='https://www.isc-sl.com/oval-threaded-reinforced-tube-insert/ljmo//'target ='_top'>LJMO</a></b>   Our threaded tube insert is manufactured in ZCS. It is also available for rectangular tubes, please visit our family LJMSZ.   .   The square threaded reinforced tube inserts JTPOA are made of <b>glass fiber reinforced polyamide</b> (PA6630%GF), a material that offers <i>excellent resistance</i>. While the <i>nuts</i> are made of <b>nickel-plated brass</b> (NB) and <b>304 stainless steel</b> (SS).<br> <br> These inserts are ideal for applications that require supporting high weights, as they reach resistances from <i>560 to almost 1,000 kilograms</i>.   Our <b>reinforced and threaded</b> LJMZ inserts for oval tubes are made of a <b>Zamak</b>. <br><br> Available for: Square tubes: <b><a href=' https://www.isc-sl.com/square-threaded-and-reinforced-tube-insert/ljm/'target='_top'>LJM</ a></b> / Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top' >LJMR</a></b> / Rectangular tubes: <b><a href=' https://www.isc-sl.com/rectangular-threaded-and-reinforced-tube-insert/ljmz/'target ='_top'>LJMZ</a></b>
