Oval threaded reinforced tube insert

Products

Our threaded insert is manufactured in Zamak alloy for oval tubes. It is also available for square tubes: LJM, round tubes: LJMR and for rectangular tubes: LJMZ.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

Reference	For Tube	Tube Thickness	Metric Thread (M)	D x B	H	d x b	L						More Info.

03200800019	38 x 20	1,50	M10	38,30 x 20,10	5,00	35,30 x 17,50	14,70
03200800020	38 x 20	2,00	M10	38,00 x 20,00	5,00	34,30 x 16,60	15,00

If you are interested in our family LJMO, you may be interested in these families as well:

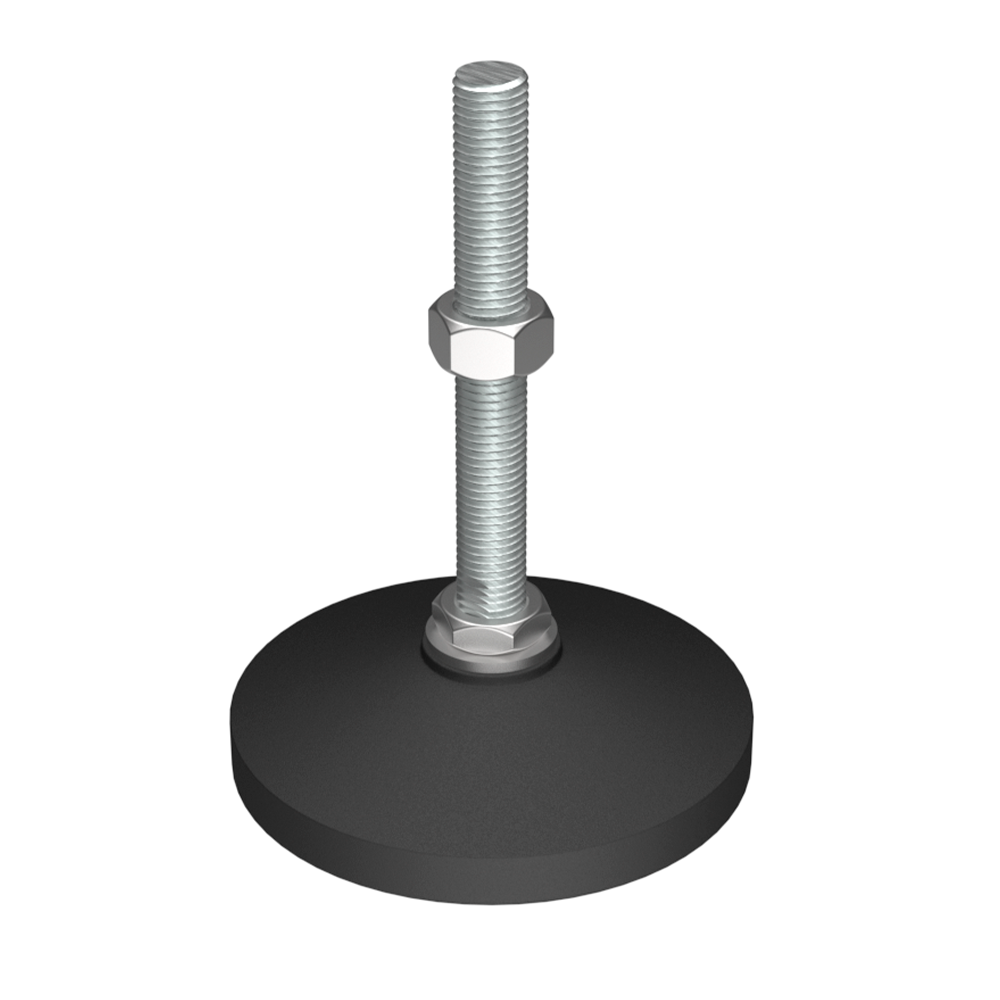

Our heavy duty adjustable foot has a reinforced base that resists a weight up to 3,000 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties. It can also be supplied with non-slip base.
<br>
The standard product is made in stainless steel type 304 and it can also be made in type 316 on request.

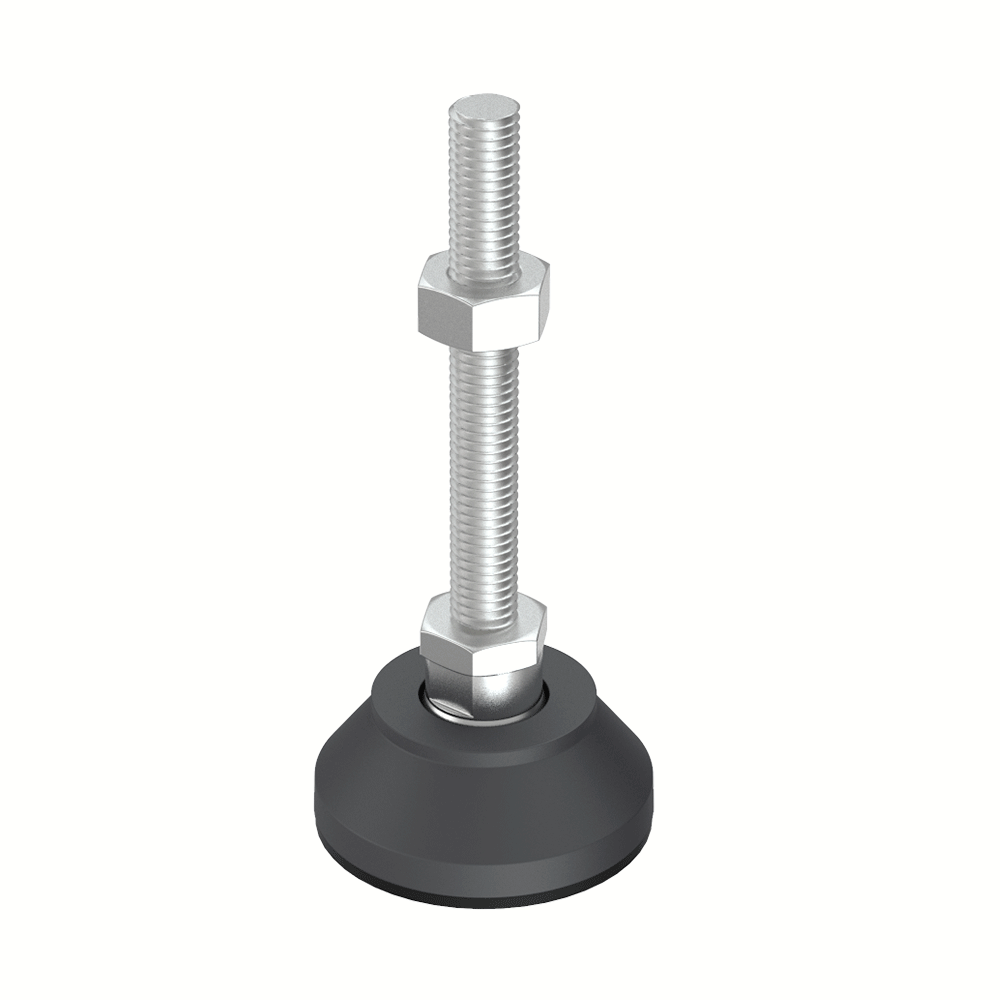

Our high-resistance JTPUU adjustable feet have a base made of <b>Polyamide reinforced with a 30% fiberglass</b>, which supports a maximum load of <b>267 kg or 294 kg</b> , depending on the diameter of the base.<br><br>
These adjustable feet have been designed for applications where a good finish and good mechanical properties are necessary. They are particularly suitable for <b>machinery</b> and are available in M8, M10, M12 and M14.<br><br>
They allow a maximum inclination of <b>15º</b> and can be supplied with <b>non-slip base</b> made of <b>EPDM</b>.<br>
For the standard part, zinc-plated steel <b>(ZCS)</b> or 304 stainless steel <b>(SS)</b> is used and, upon request, we can manufacture it in <b>316</b> .

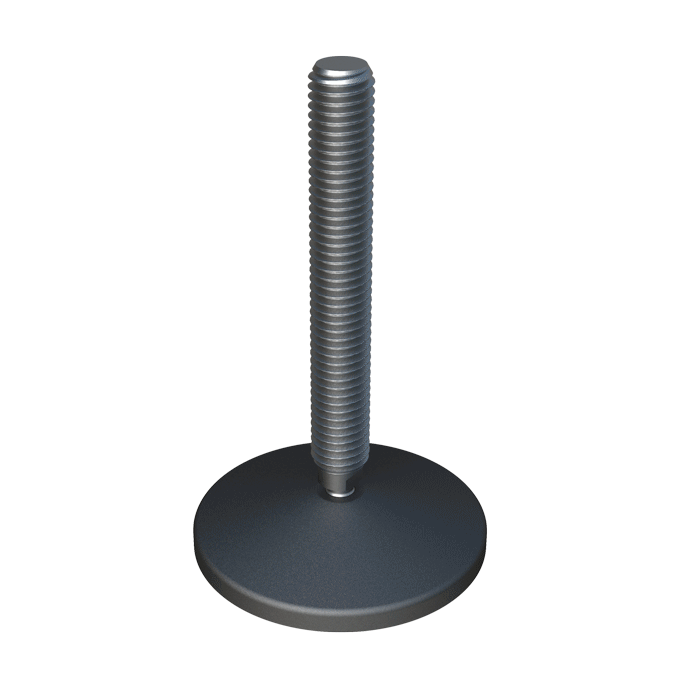

Our heavy duty adjustable foot has a reinforced tilting base of 15º that resists a weight up to 1,300 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties.
<br>
The standard product is made in stainless steel type 304 and it can also be made in type 316 on request. Available also with anti-skid base made of TPV.

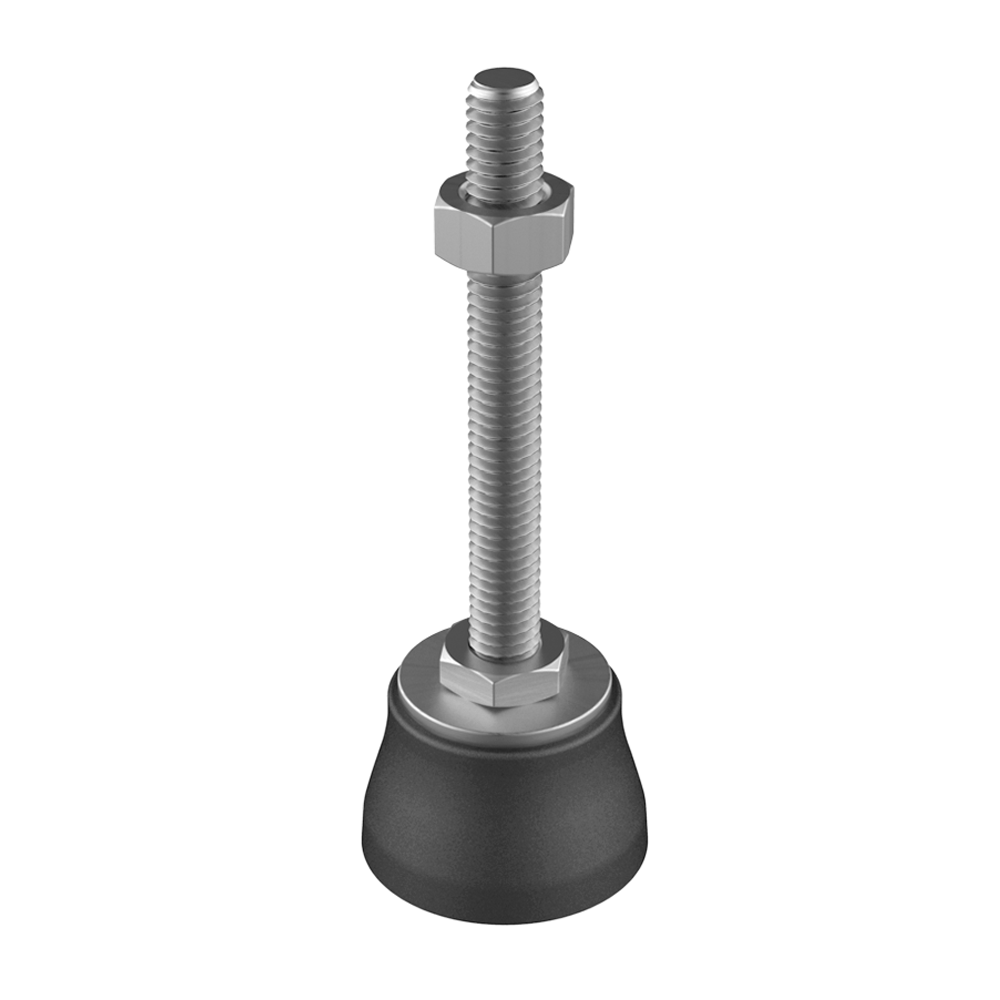

Our JTPZ <b>heavy duty adjustable fixed feet</b> have a reinforced base made of <b>glass-filled polyamide 6</b>, which allows them to support a weight of up to 781 kg depending on the reference. These levelers have been designed for use in applications that require a quality finish and good mechanical properties. It can be supplied with <b>anti-slip base</b> in <b>EPDM</b>.<br>
<br>
The standard thread is manufactured in <b>type 304 stainless steel</b> and, upon minimum order, we can manufacture it in <b>type 316</b>.
<br><br>
Levelers with stem length (L) equal to or greater than <b>71 mm</b> are supplied with an adjustment <b>nut</b>.

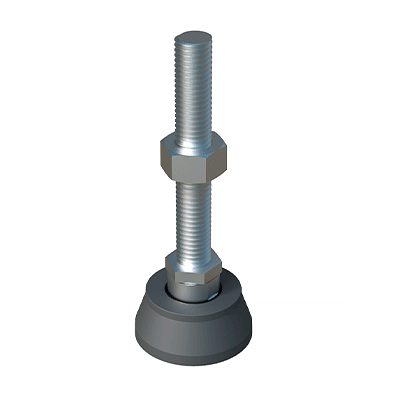

Our heavy duty adjustable foot has a reinforced tilting base of 15º that resists a weight up to 294 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties. It can also be supplied with a non-slip base.
