Our LWR saddle foot for round tubes skid type, made of Polyamide 6, is ideal for round metal tube chairs. It is inserted under pressure by a snap-in central peg, which locks and immobilizes the piece in its position to prevent it from moving once placed.
The piece can be supplied with bases that are made of various materials which, in summary, have the following characteristics:

* Sliding PTFE (Teflon) base, which gives good sliding and minimal friction, both dynamic and static, on most types of floors. The ensemble of the base is by a powerful acrylic adhesive.

* Base in Sliding wool felt, perfect for delicate floors such as parquet. Additionally, it gives noise reducing properties to the piece The ensemble of the base is by a powerful acrylic adhesive.
* Base in TPU (Thermoplastic Polyurethane) with a degree of hardness ≈ 80 Shore. This material provides a very effective anti-slip property for a wide range of floor types. It also provides high durability and high protection for the floor, since it prevents bumps/scratches, as well as a “noise-reducing” effect, with good noise damping. The ensemble of the base is by a powerful acrylic adhesive.
Contact our commercial department if you want special colors, additional dimensions and personalized designs, available upon request with a minimum order.
  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
For tube
L
D
H
d
B
C



More
Info.
00700600020 16 to 17 28,00 20,00 16,00 5,00 25,00 12,00
00700600021 18 to 20 29,75 24,50 18,60 5,50 25,00 15,00
00700600022 21 to 22 30,00 26,50 19,30 5,80 25,00 15,00
00700600023 24 to 25 42,00 29,50 24,30 5,60 31,00 17,00

If you are interested in our family LWR, you may be interested in these families as well:

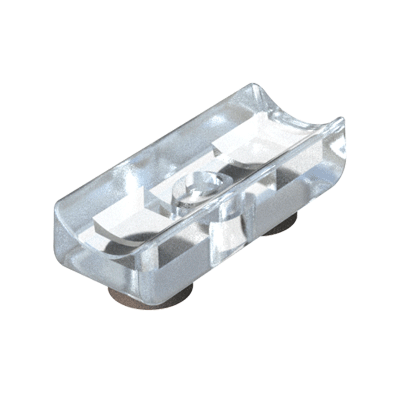

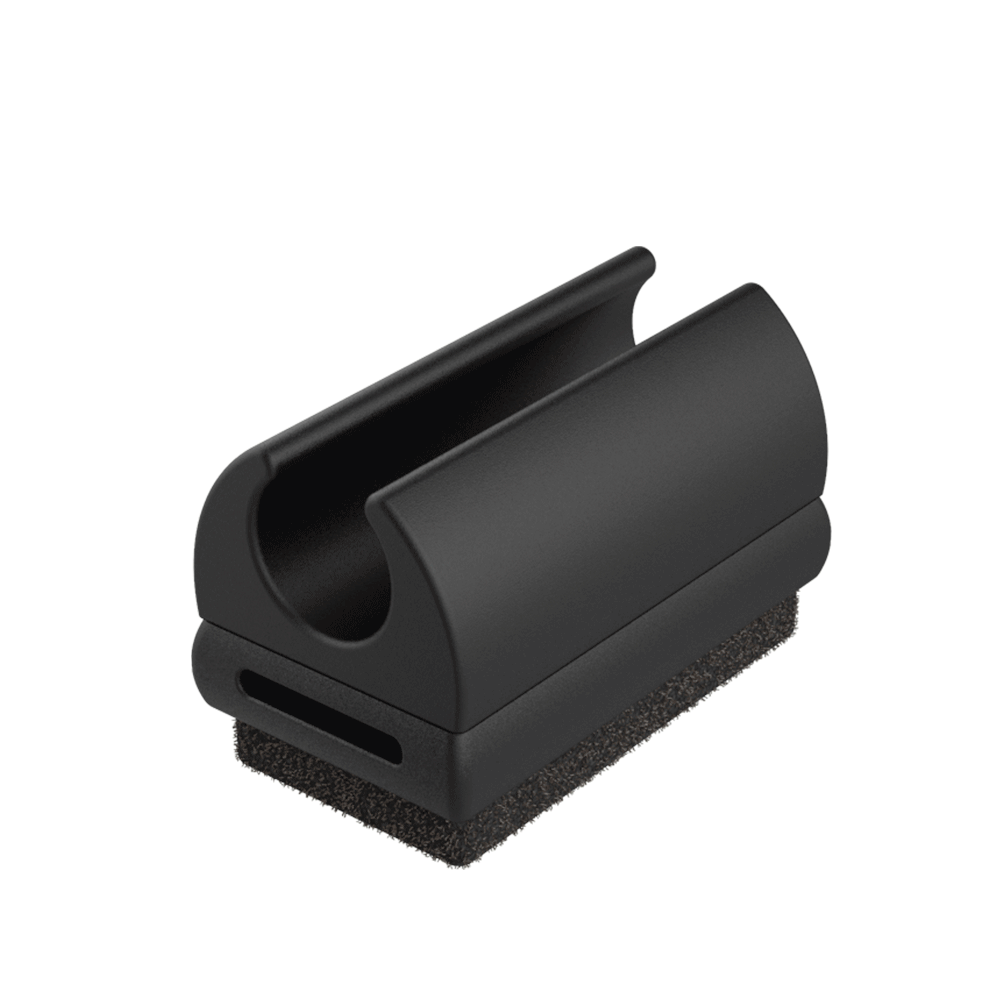

The VAE saddle foot <b>with interchangeable felt bases</b> is used on chairs made of round metal tubes. This saddle foot has been designed to <b>easily and manually replace the felt bases once they have reached the end of their useful life</b>. In this way, they contribute to economic savings and a <b>reduction in waste generation and carbon footprint</b>, as well as to the correct functioning of the saddle, since it prevents damage caused by felt wear.<br><br>Contact our sales department if you require special colours, additional dimensions and custom designs, all available under a minimum order quantity.   Discret saddle foot, elegant and durable design offers the following features:<br><br>

* <i> Available in clear and black color.<br>
* <i> Made of transparent polycarbonate (PC) material, and in black polyamide 6 (PA6). <br>
* <i> Available with or without felt.<br>
* <i> Suitable for 10mm round tube up to 25mm. <br>
* <i> Ideal for designer chairs.<br>
