Description and features

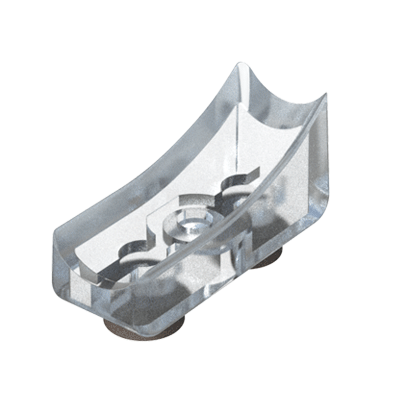

Discret saddle foot, elegant and durable design offers the following features:* Available in clear and black color.
* Made of transparent polycarbonate (PC) material, and in black polyamide 6 (PA6).
* Available with or without felt.
* Suitable for 10mm round tube up to 25mm.
* Ideal for designer chairs.
Product images and technical drawings
Product view
Technical drawing
Video
Part numbers and dimensions of Saddle foot for round tubes
| Reference | For tube (D) |
B |
L |
c |
C |
More Info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02500200205 | 10 to 11 | 15,00 | 38,30 | 5,00 | 10,00 | ||||||||
| 02500200206 | 12 to 13 | 15,00 | 38,30 | 4,50 | 10,00 | ||||||||
| 02500200207 | 14 to 16 | 15,00 | 38,00 | 4,50 | 8,50 | ||||||||
| 02500200208 | 17 to 19 | 17,00 | 38,30 | 4,50 | 8,50 | ||||||||
| 02500200209 | 22 to 25 | 18,50 | 38,30 | 4,25 | 8,25 |
