Our ribbed insert for oval tubes has a metal nut inserted during the injection process. It is also available for square tubes: JTPO, rectangular tubes: LJZ, round tubes: LJRL, and triangle tubes: LJZZ.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube (DxB)
Tube Thickness
Metric Thread (M)
L
H



More
Info.
00300410110 30 x 15 1,00 M8 19,50 5,00
00300410111 30 x 15 1,50 M8 19,50 5,00
00300410112 35 x 20 1,50 to 2,00 M8 19,50 5,00
00300410113 35 x 20 1,50 to 2,00 M10 19,50 5,00
00300410114 38 x 20 1,50 to 2,00 M8 19,50 5,00
00300401274 38 x 20 1,50 to 2,00 M10 19,50 5,00
00300410115 40 x 20 1,50 to 2,00 M8 19,50 5,00
00300410116 40 x 20 1,50 to 2,00 M10 19,50 5,00

If you are interested in our family LJMT, you may be interested in these families as well:

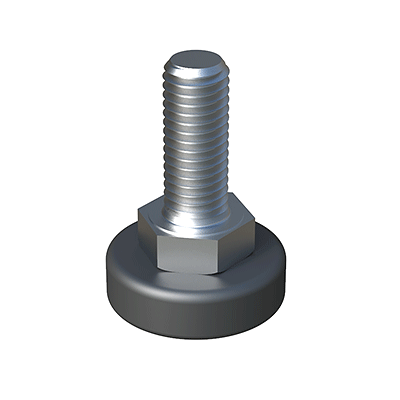

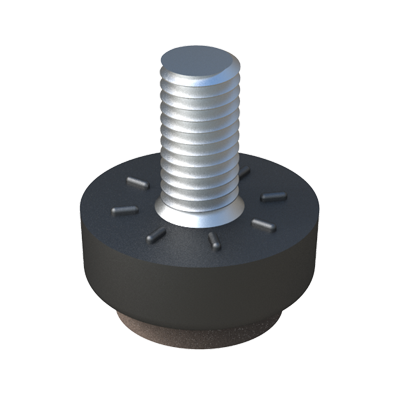

Our adjustable foot has a knurled base for easier handling.   Our adjustable foot with a hexagonal screw for easier fitting.   Our adjustable foot has a decorative round base.   The screw of our adjustable foot is in zinc coated steel, the cover in stainless steel and the base in polipropylene. The part is available without cover, please see our family LHVD. The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º.   Our adjustable foot is available without felted base (and in M6 size), please visit our family LK.   Our LKT leveling foot is made of <i>nylon (PA6 - <b>polyamide 6</b>)</i>, something that gives it good resistance, and has a design with a <b>knurled/grooved</b> base which provides ease of handling and a quality finish.<br>
The adjustable foot is available with a <b>non-slip base</b> (references ending in <b>CB</b>), whose manufacture is made of <i>TPE - <b>thermoplastic elastomer</b>)</i>.<br>
Adjustable foot whose base is equal to or greater than 60 mm in diameter can be fitted with the <b><a href='https://www.iscsl.co.uk/trimming-cover-for-round-tubes/lrr/'> LRR </a></b>trim.<br>
