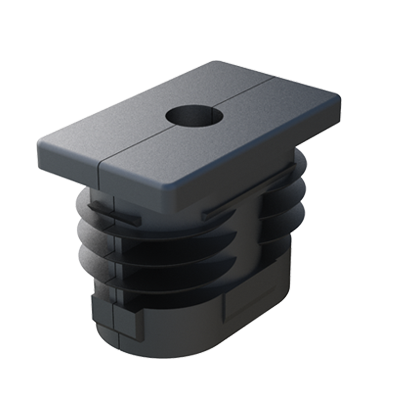

Our SCAAB expanding end cap for rectangular tubes incorporates two cavities for housing an axle. The cavities allow hexagonal nuts to be inserted.
The expansion system creates a plug-like effect inside the tube, providing greater rigidity and stability to the joint, especially in structures subject to movement or vibration. Thanks to the rigidity of the joints, they are suitable for securing components against walls or ceilings. The end cap head can withstand compressive loads. For wheel fixing, the thread must be fully tightened to achieve the expansion effect. Using 2 nuts provides greater resistance to lateral impacts than a single nut, but does not increase pressure resistance, which is limited by the end cap head.
· Material: PA6 (Polyamide 6)
· Colour: Black
· Flammability: UL94HB
· Nuts: ZCS (Zinc-plated steel) or SS (Stainless steel)
· Configuration: without nuts, 1 upper nut, 1 lower nut or 2 nuts
For special colour or nut type configurations, please consult the sales department.
RAL colors manufactured
