Description and features
It is available in LDPE or PA6, depending on the reference. With the ones manufactured in PELD the felt is overinjected, and with the ones in PA6 the felt is assembled after the injection process. It is also available without felt, see our family LL.
RAL colors manufactured Product images and technical drawings

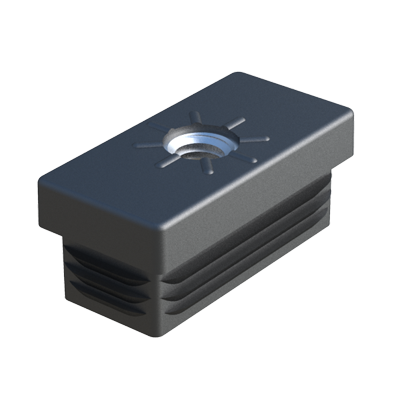

Product view
Technical drawing
Video
| 00301200561 | M8 | 20,00 | 21,70 | 8,00 | 16,00 | ||||||||
| 00301200533 | M8 | 20,00 | 28,50 | 8,00 | 16,00 | ||||||||
| 00301200565 | M8 | 17,00 | 30,40 | 8,00 | 15,40 | ||||||||
| 00301200541 | M8 | 17,00 | 34,20 | 8,00 | 15,50 | ||||||||
| 00301200562 | M8 | 30,00 | 21,70 | 8,00 | 26,00 | ||||||||
| 00301200534 | M8 | 30,00 | 28,50 | 8,00 | 26,00 | ||||||||
| 00301200566 | M8 | 30,00 | 30,40 | 8,00 | 26,00 | ||||||||
| 00301200542 | M8 | 30,00 | 34,20 | 8,00 | 26,00 | ||||||||
| 00301200563 | M8 | 40,00 | 21,70 | 8,00 | 36,00 | ||||||||
| 00301200535 | M8 | 40,00 | 28,50 | 8,00 | 26,00 | ||||||||
| 00301200567 | M8 | 40,00 | 30,40 | 8,00 | 36,00 | ||||||||
| 00301200543 | M8 | 40,00 | 34,20 | 8,00 | 36,00 | ||||||||
| 00301200564 | M8 | 50,00 | 21,70 | 8,00 | 46,00 | ||||||||
| 00301200536 | M8 | 50,00 | 28,50 | 8,00 | 46,00 | ||||||||
| 00301200568 | M8 | 50,00 | 30,40 | 8,00 | 46,00 | ||||||||
| 00301200544 | M8 | 50,00 | 34,20 | 8,00 | 46,00 | ||||||||
| 00301200569 | M10 | 20,00 | 30,40 | 8,00 | 14,00 | ||||||||
| 00301200537 | M10 | 20,00 | 28,50 | 8,00 | 15,00 | ||||||||
| 00301200545 | M10 | 20,00 | 34,20 | 8,00 | 15,00 | ||||||||
| 00301200570 | M10 | 30,00 | 30,40 | 8,00 | 24,00 | ||||||||
| 00301200538 | M10 | 30,00 | 28,50 | 8,00 | 15,00 | ||||||||
| 00301200546 | M10 | 30,00 | 34,20 | 8,00 | 25,00 | ||||||||
| 00301200571 | M10 | 40,00 | 30,40 | 8,00 | 34,00 | ||||||||
| 00301200539 | M10 | 40,00 | 28,50 | 8,00 | 35,00 | ||||||||
| 00301200547 | M10 | 40,00 | 34,20 | 8,00 | 35,00 | ||||||||
| 00301200572 | M10 | 50,00 | 30,40 | 8,00 | 44,00 | ||||||||
| 00301200540 | M10 | 50,00 | 28,50 | 8,00 | 45,00 | ||||||||
| 00301200548 | M10 | 50,00 | 34,20 | 8,00 | 45,00 |
