Product images and technical drawings

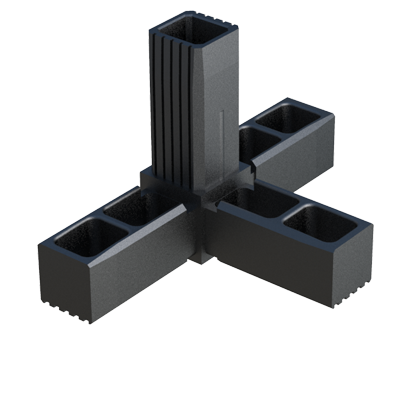

Product view
Technical drawing
Video
Part numbers and dimensions of 4 tubes C connector with a cavity for metal core
| Reference | For Tube |
Tube Thickness |
L |
H |
More Info. |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00201206445 | 20 x 20 | 1,50 | 36,00 | 20,00 | |||||||||
| 00201206455 | 25 x 25 | 1,50 | 52,00 | 25,00 | |||||||||
| 00201206463 | 30 x 30 | 2,00 | 47,00 | 30,00 |
