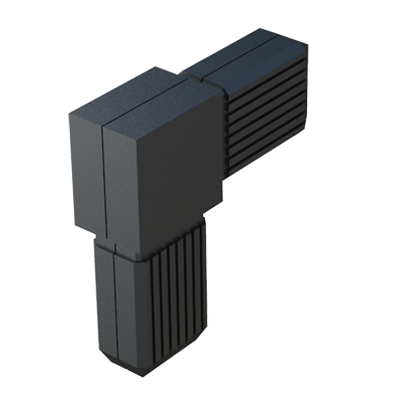

Part numbers and dimensions of 2 tubes elbow connector with a cavity for metal core and visible union
| Reference | For Tube |
Tube Thickness |
L |
More Info. |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02300400200 | 20 x 10 | 1,00 | 20,00 | ||||||||||
| 02300400197 | 60 x 40 | 1,50 | 49,00 | ||||||||||
| 02300400199 | 60 x 40 | 2,00 | 48,00 | ||||||||||
| 02300400198 | 60 x 40 | 2,00 | 49,50 |
