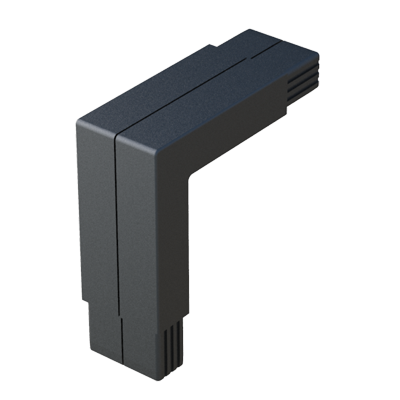

Part numbers and dimensions of 2 tubes elbow connector with visible union
| Reference | For Tube |
Tube Thickness |
L |
More Info. |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02300400204 | 20 x 10 | 1,00 | 20,00 | ||||||||||
| 02300400205 | 20 x 10 | 1,50 | 20,00 | ||||||||||
| 02300400220 | 25 x 10 | 1,50 | 19,00 |
