Our 3-way connector has been designed for square tubes. It is supplied with an internal metal core. It has a thread of M8 or M10, depending on the reference.

Material:  PA6   S   ZCS
Standard colors: Black
Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For tube (DxB)
Tube thickness (C)
H
L
M

PDF
3D IGS
Add
02300400052 25 x 25 1,50 25,00 50,00 M8
02300400053 25 x 25 1,50 25,00 52,00 M10
02300400054 30 x 30 2,00 30,00 47,00 M8
02300400055 30 x 30 2,00 30,00 47,00 M10

If you are interested in our family THCYB, you may be interested in these families as well:

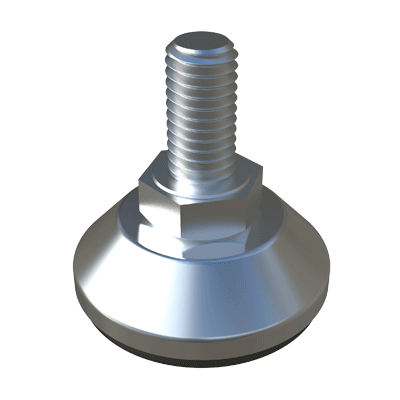

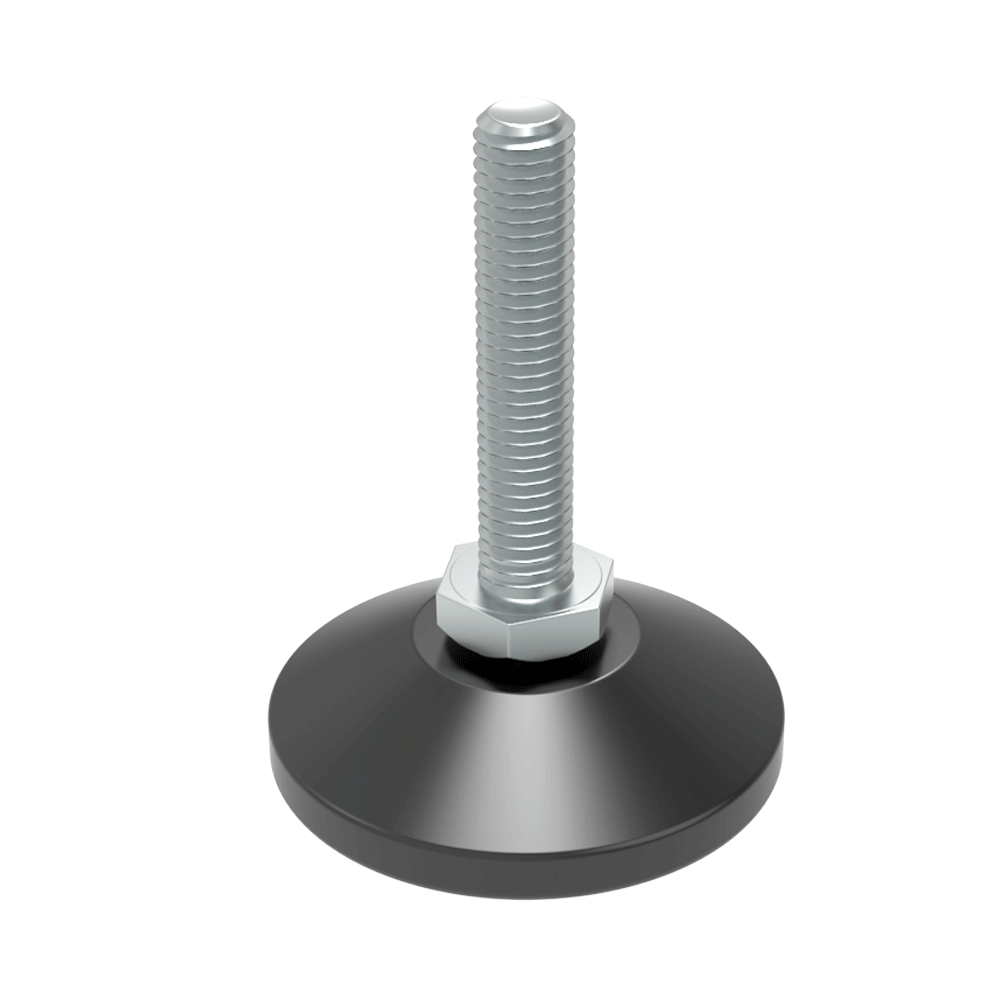

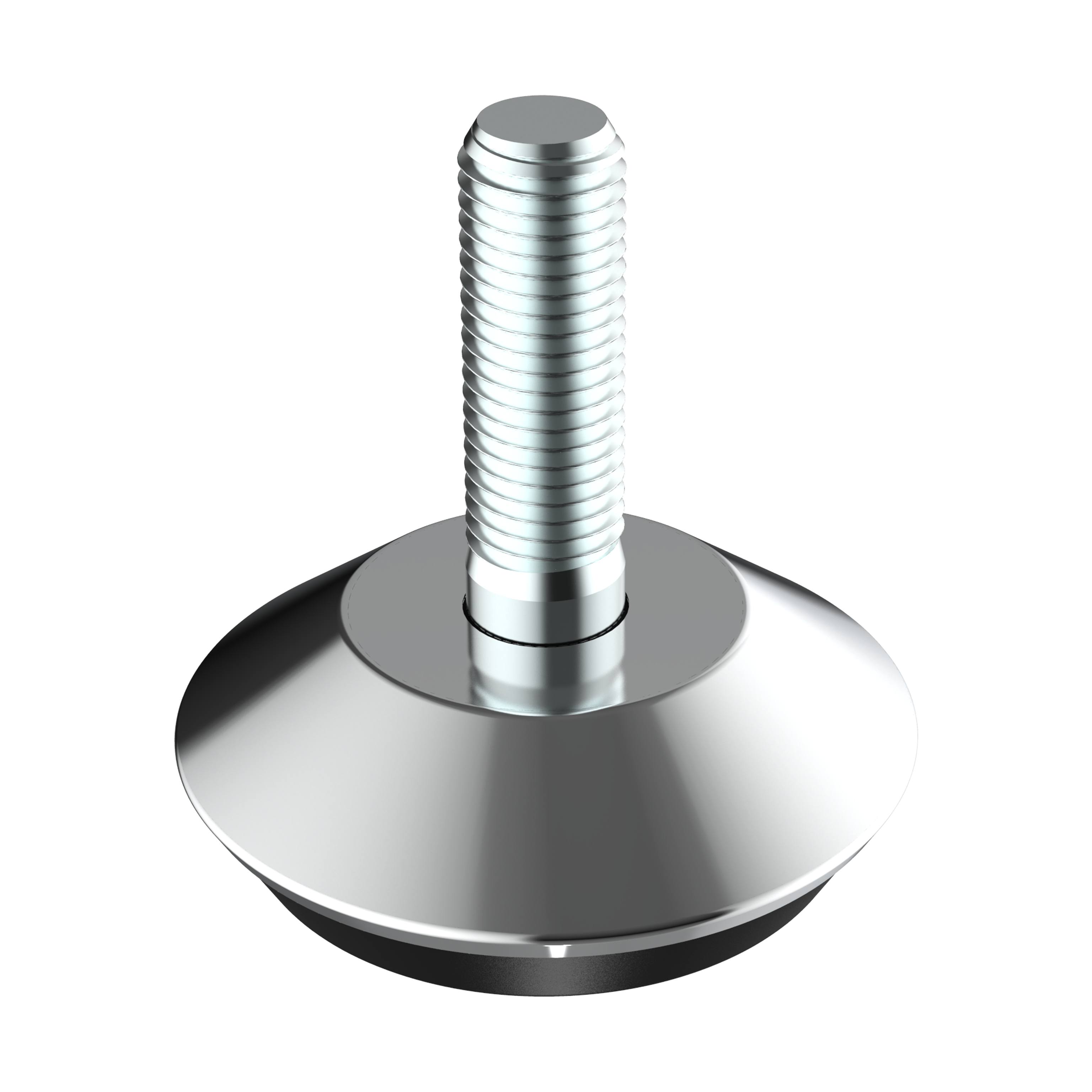

The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º. If you are interested in the same part without movement, see our family LHVF. Available with allen socket in the screw head. If you want this part with anti-skid base, please visit our family LHVDZ.   Our round adjustable foot has a steel cover. If you need it with an hexagonal nut for an easier assembly, see our family LHDE. If you want the part with movement or tilting, please visit our family MFDD.   The screw of our adjustable foot is in zinc coated steel, the cover in stainless steel and the base in polipropylene. The part is available without cover, please see our family LHVD. The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º.   Our 4-way connector has been designed for square tubes. It is supplied with an internal core in steel. It has a thread of M8 or M10, depending on the reference.
