Description and features
Our wire/cable holders are designed to mount into 4.76mm hole diameters. Our wire/cable holders can be used in a variety of panel thicknesses and materials. Sizes are available to handle wire bundle diameters from 9.53mm to 12.70mm.
Possible to get dyed colors Product images and technical drawings

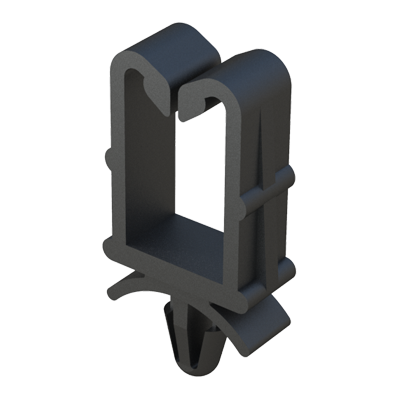

Product view
Technical drawing
Video
Part numbers and dimensions of Wire holder and cable holder
| Reference | Hole size |
Panel thickness |
A |
B |
C |
D |
More Info. |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00101100166 | 5,00 | 0,80 to 8,00 | 21,20 | 12,70 | 9,50 | 6,40 | |||||||
| 00101100167 | 5,00 | 0,80 to 8,00 | 27,60 | 19,00 | 9,50 | 6,40 | |||||||
| 00101100168 | 5,00 | 0,80 to 8,00 | 28,40 | 19,00 | 12,70 | 6,40 | |||||||
| 00101100169 | 5,00 | 0,80 to 8,00 | 34,80 | 25,40 | 12,70 | 6,40 |
