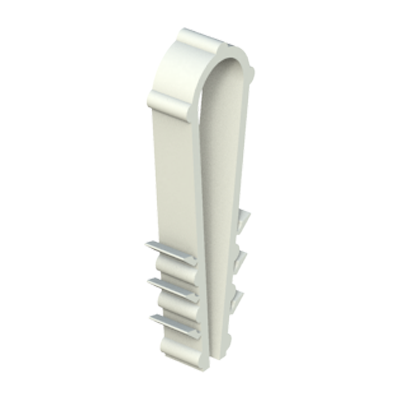

The wire and tube retaining strap has to be fixed into a 6.35 mm hole. The other side simply inserts the pin end into the receiver end. The wire or tube is secured in place without screws.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Panel hole size (A)
Panel Thickness (G)
Maximum cable bundle (r)
L
A
D
H
E/H1



More
Info.
00101100181 6,35 0,80 to 4,70 7,93 48,39 38,86 9,53 11,94 0,76 / 8,89
00101100182 6,35 0,80 to 4,70 9,52 53,47 43,94 9,53 11,94 0,76 / 8,89
00101100183 6,35 0,80 to 4,70 11,10 58,55 49,02 9,53 11,94 0,76 / 8,89
00101100184 6,35 0,80 to 4,70 12,70 64,21 54,10 9,53 11,94 0,76 / 8,89
00101100185 6,35 0,80 to 4,70 14,28 69,47 59,94 9,53 11,94 0,76 / 8,89

If you are interested in our family MAMH, you may be interested in these families as well:

Our quick cable clamps are designed for one-handed installation. The design features an integrated ratchet fastener which eliminates the need for a screw or other fastener. The part is self-aligning, and the built-in handle allows for quick and easy installation without tools. The parts are suitable for many different wire, cable, or tubing routing applications.   Our loop fastener is a U-shaped blind fastener for installation of pipes or cables on a wall or ceiling. Slip U-shaped fastener over wire or tube and push into drilled hole.   Our MAS fastening cable clamps are used in many applications, as they <i>fix, isolate and facilitate the laying of cables, hoses, tubes, lighting elements and fiber optics</i>. These clamps made of <b>PA66</b> material (nylon) are durable, resistant to chemicals and are perfect for various applications in sectors such as the automotive industry, electronics, mechanical construction, household appliances, engineering…
