Tilting adjustable foot in zinc coated steel LHVB

Description and features

The LHVB leveling feet are manufactured in (ZCS) Zinc Coated Steel and feature a DIN 558-4.6-A2F swivel screw with a hexagonal base and a tilt range between 10º and 13º, depending on the reference. They provide a secure joint thanks to a Torx T20 screw (max torque 3.4 Nm) that locks the base to the screw.
Regarding the base, there are two options depending on the reference: without holes and with two holes that allow the foot to be screwed down and firmly fixed to the floor (references ending in H).

These feet support a load of approximately 6380 N, although we always recommend keeping a safety margin. Levelers must be adjusted without load, and we do not recommend their use as gliders, but rather as static elements.

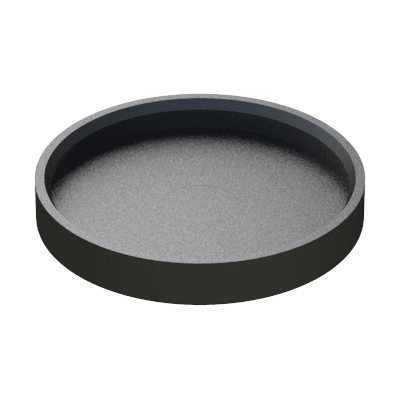

If surface protection against potential scratches/impacts is needed, we suggest fitting the protective cap LKB, made of (LDPE) Low Density Polyethylene.

Special configurations available upon request:

* Other lengths and thread sizes.
* Base in (SS) Stainless Steel.
* Hexagonal recess for Allen key on the top of the thread.
