Thick round tube insert - ISC Plastic Parts

Our ribbed insert with enlarging head for round tubes has been designed for a good finish and greater stability.

RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line:

BIO LINE

the following references are also available in environment friendly materials. Contact our Commercial Office for more information.
Video:

Reference	For Tube	Tube Thickness	D	d1	d	L	H						More Info.

00300400238	18	1,00 to 2,00	19,50	17,00	13,00	25,00	12,00
00300400239	20	1,00 to 2,00	21,50	19,00	15,00	24,50	13,00
00300400240	22	1,50 to 2,50	23,50	20,80	15,00	29,50	13,75
00300400241	25	1,50 to 2,50	26,70	23,00	18,00	30,00	15,00
00300400242	28	1,50 to 2,50	30,00	26,00	21,00	30,00	16,00
00300400243	30	1,50 to 2,50	32,00	28,00	23,00	35,00	17,00

If you are interested in our family LGLK, you may be interested in these families as well:

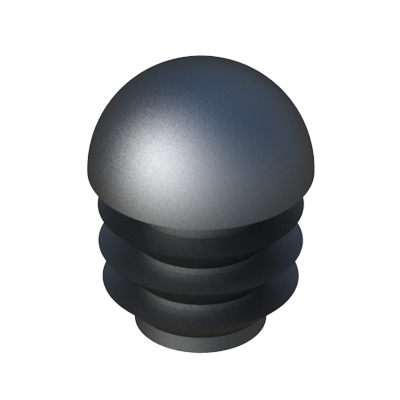

<p>Our <b>LGLR tube inserts</b> are designed for installation in round tubes. They feature a spherical head and a high-quality finish.</p>

<p>Manufactured from <b>LDPE (low-density polyethylene)</b>, they include fins that improve retention once installed. This range is compatible with tube outside diameters from 16 mm to 80 mm. Depending on the reference, the finish may be smooth or textured, with varying texture intensity.</p>

<p>· <b>Material:</b> LDPE<br>· <b>Compatibility:</b> Round tubes<br>· <b>Diameter range:</b> From 16 mm to 80 mm<br>· <b>Standard colours:</b> Black, grey and white</p>

<p><i>References with tube dimensions expressed in inches (R) correspond to common imperial-size tubes. RAL colours are available on request; please contact our sales department for sales conditions.</i></p>
