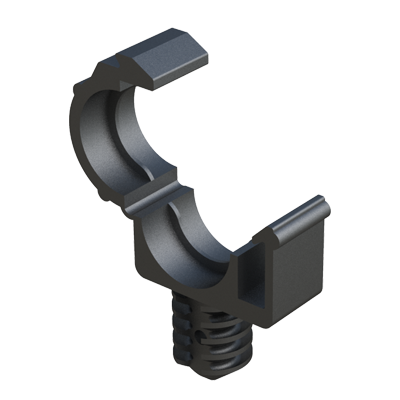

Our MAPA cable clamps with OMEGA anchor have a design that allows cables and tubes to pass through the open part and then insert the pressure anchor quickly and safely into the hole of the panel, where we want to fix them.
Available in two different designs, this cable clamp is suitable for all kind of applications in electrical equipment, telephone systems, household appliances, audio equipment, etc.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Panel Hole Size
Panel Thickness
D
L
Type



More
Info.
00101100539 6,35 0,76 to 3,18 12,70 9,50 1
02800120198 6,50 to 6,70 0,50 to 3,00 16,80 x 13,50 8,00 2
02800120199 6,50 to 6,70 0,70 to 2,00 16,80 x 13,50 8,00 2
02800120200 6,50 1,00 to 3,00 8,00 x 6,00 8,00 2
02800120201 6,50 1,00 to 3,00 16,80 x 13,50 8,00 2
02800120202 6,50 1,50 to 3,00 15,80 x 8,60 8,00 2
