Description and features

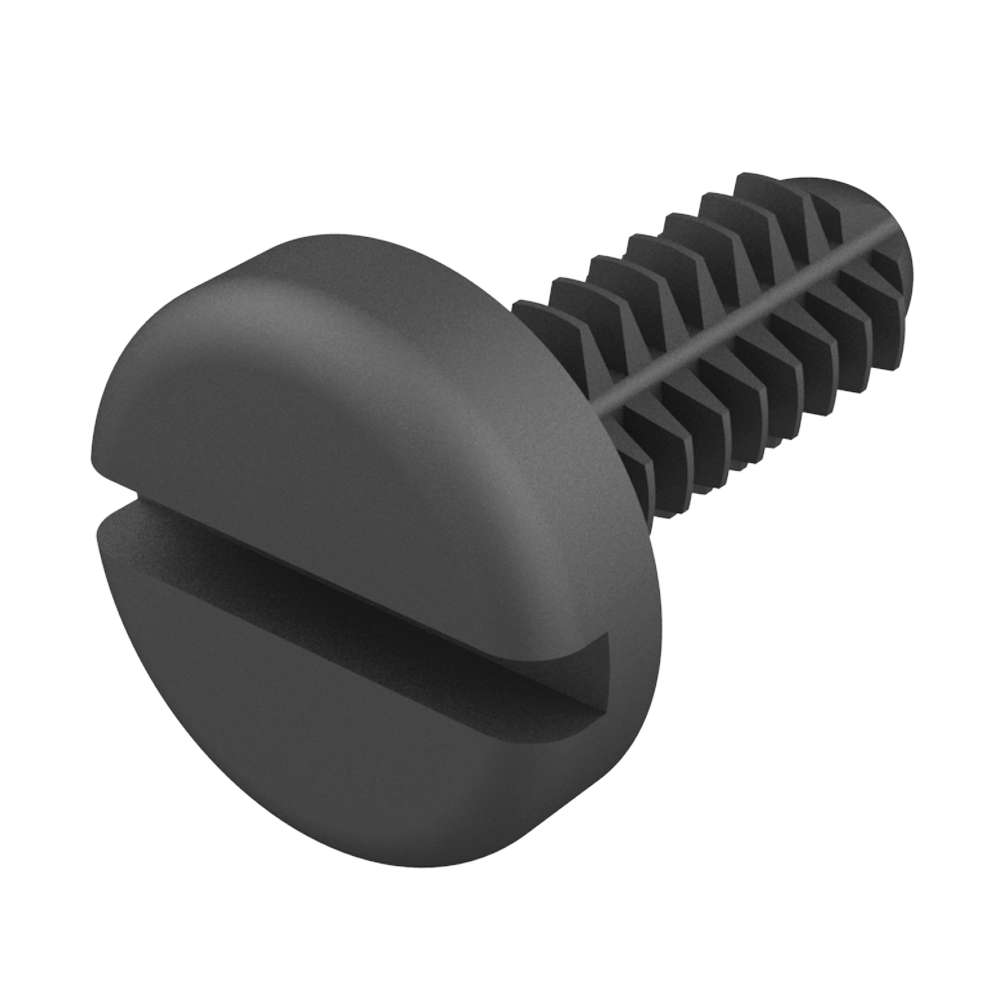

The design of this spin clip combines the advantages of a push-in type fastener with a unslotted knurled screw. For fast assembly, the clip can be pushed into a threaded hole, and then screwed in for a tighter fit, or screwed out for disassembly.
  Possible to get dyed colors Part numbers and dimensions of Spin clip - Unslotted knurled screw
| Reference | Hole size |
L |
D |
A |
More Info. |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00100300203 | 5,16 | 9,53 | 9,53 | 2,36 | |||||||||
| 00100300204 | 5,16 | 12,70 | 9,53 | 2,36 | |||||||||
| 00100300205 | 5,16 | 15,88 | 9,53 | 2,36 | |||||||||
| 00100300206 | 5,16 | 19,05 | 9,53 | 2,36 | |||||||||
| 00100300207 | 5,16 | 25,40 | 9,53 | 2,36 |
