The BWR round saddle foot is designed for secure fastening thanks to its two anchoring points. It is available in the following finishes and features:

Made of PA6 (Nylon): High wear resistance and excellent sliding properties.
Made of PA6 (body) with wool felt base (FELT): Ideal for delicate floors, such as wood.
Made of PA6 (body) with polyurethane base (PUR): Provides anti-slip properties, as well as sound-dampening qualities.
Made of PVC-C: Offers a high-quality translucent finish.

Please contact our sales department if you require special colors, additional dimensions, or custom designs, all under a minimum order.
  RAL colors manufactured

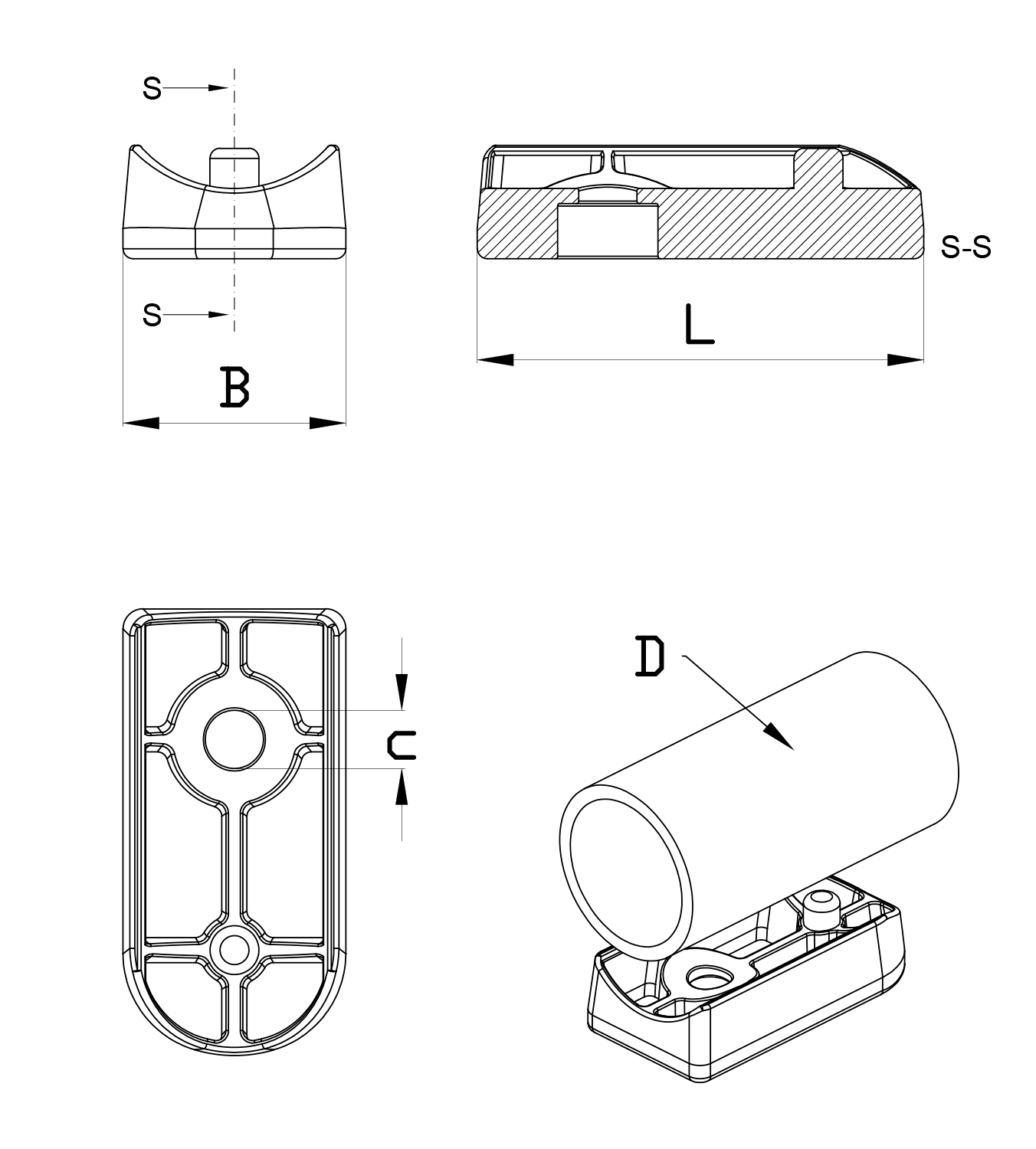

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
For tube (D)
B
L
c



More
Info.
00700600410 25 22,00 45,00 5,70
00700600411 30 27,00 50,00 5,90
