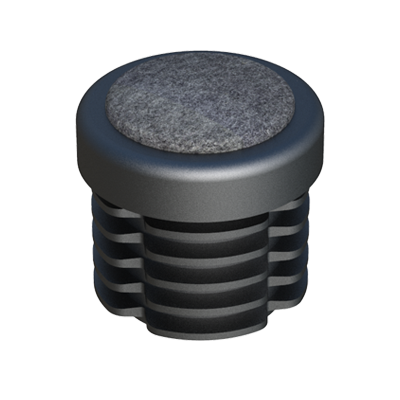

The round LGFL end caps integrate felt bases through advanced processes such as friction welding, overmolding, or adhesion, to bond them with the body made of LDPE material. Each technique provides different levels of resistance to transverse stresses, ensuring excellent durability and stability. These features make them an optimal solution for applications in chairs and furniture.

Available types of felt:
Natural wool (FELT): Ideal for delicate floors, such as wood or marble. It offers sound-reducing properties, although its wear resistance is lower.
Synthetic wool (SYFELT): Designed for intensive use, it stands out for its high wear resistance, making it suitable for more demanding surfaces.
  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.
Video:


Reference
For Tube (D)
Tube Thickness
H
L
Synthetic felt (SYFELT)
Wool felt (SYFELT)



More
Info.
00700800700 12 0,80 to 2,00 7,00 10,00
04200800018 12 1,00 7,60 16,10
00700800701 13 0,80 to 2,00 6,70 11,50
00700800702 14 0,80 to 2,00 8,50 10,50
04200800019 14 1,00 7,80 16,10
00700800703 15 0,80 to 2,00 6,60 11,30
00300400911 15 1,50 to 2,00 7,70 9,30
00700800704 16 0,80 to 2,00 8,60 11,60
04200800020 16 1,00 7,10 17,00
00300400912 16 1,50 to 2,00 8,80 10,00
00700800705 18 0,80 to 2,50 8,50 11,50
04200800021 18 1,00 7,30 17,00
00300400913 18 1,50 to 2,00 8,00 12,00
00700800706 19 0,80 to 2,50 9,00 11,80
00300400914 19 1,50 to 2,00 8,00 11,00
00700800707 20 0,80 to 2,50 8,60 11,40
04200800022 20 1,00 7,10 17,00
00300400915 20 1,50 to 2,00 8,00 11,80
00700800708 22 0,80 to 3,00 8,60 11,80
04200800023 22 1,00 7,30 17,20
00300400916 22 1,50 to 2,00 8,00 12,00
00700800709 23 0,80 to 3,00 8,00 11,80
04200800024 25 1,00 7,30 17,20
00700800710 25 1,00 to 3,00 8,00 11,80
00300400917 25 1,50 to 2,00 9,00 11,80
00700800711 26 0,80 to 3,00 8,50 11,80
00700800712 28 0,80 to 2,50 8,90 11,80
00300400918 28 1,50 to 2,00 9,00 14,00
00700800713 30 0,80 to 2,50 8,90 11,80
00300400919 30 1,50 to 2,00 9,00 14,00
00700800714 32 0,80 to 3,00 8,00 11,80
00300400920 32 1,50 to 2,00 9,50 14,50
00700800715 35 1,00 to 3,00 8,60 11,40
00700800716 40 1,00 to 3,00 8,00 11,80
00700800717 42 0,80 to 2,50 8,60 11,80

If you are interested in our family LGFL, you may be interested in these families as well:

Round glides with <i>felt base for chairs and furniture</i>. We incorporate the felt during the injection process, so it offers much <b>more resistance than those felts installed through adhesives or other systems</b>. The felt comes from the wool and has properties such as <i>insulation and thermal, acoustic and mechanical protection</i>, so its application is essential in the furniture industry, specifically in glides for chairs, tables or desks.   Our tube insert for round tubes LGLP is ideal for chairs. It can be produced in <b> RAL colors</b> on demand and its base is produced and offered in various materials. As a sum up, here goes their caracteristics:
<br><br>
* <i><b>PA6 base (nylon)</b></i>: good sliding and no wear-down. For parquet and wood flooring.
<br>
* <i><b>POM+PTFE base </b></i>: good sliding,  friction-proof, vibration-proof and chemically resistant. For textile flooring like carpet or rugs
<br>
* <i><b> EVA body (rubbery) with POM+PTFE </b></i>:  antiskid, vibration-proof, and sound-proof. For ceramic and wood flooring. Recommended to reduce sound (meeting rooms, theaters)...
<br>   These glides for round tubes are tiltable up to an angle of <b>20º</b>. The body of the insert is made of <b>Low-density polyethylene</b>, while the bases are made of different materials with the following characteristics: <br><br>
* <i>Base made of <b>PA6 (Nylon 6)</b></i>: offers <b>good sliding, as well as good wear resistance</b>. They are ideal on parquet and wooden floors. Also valid for humid environments and soils, as well as outdoors.<br>
* <i><b>PA6MOS base (Nylon 6 with molybdenum disulfide)</b></i>: it offers superior performance to the PA6 base and its use is recommended when <b>a very high capacity of sliding and excellent behavior against friction wear is required</b>, regardless the floor selected.<br>
* <i><b>Wool felt base (FTR)</b></i>: ideal for <b>delicate and smooth floors</b> such as parquet. In addition, it provides <b>silencing properties</b> (sound-reducing property), as well as <b>good sliding and anti-scratch protection</b>. Not recommended for outdoor or wet floors. <br>
* <i>Metallic <b>base (S)</b></i>: <b>good finish and greater resistance derived from its steel base</b>. Recommended for non-smooth surfaces (cement, carpets...) or elastic floors (pavilions, courts...).<br>
* <i>Stainless <b>base (SS)</b></i>: <b> good finish and good resistance, also to rust</b>. Recommended for outdoors, non-smooth surfaces (cement, carpets...) or elastic floors (pavilions, courts...).<br>
* <i><b>Non-slip base (TPE)</b></i>: made of rubber, in addition to being <b>non-slip</b>, it provides good wear resistance, and therefore, a <b>high durability</b>. It is applied to a very wide range of soil types.<br> <br>
Contact our commercial department if you want special colors and personalized designs, always under a minimum order.<br>
