Our glider cap has a base in FELT or in PP. The tube ferrule has been designed for round traverse ends. If you are looking for a similar part but square please consult our family LMH, for rectangular: LMHZ, and oval: LOOS.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube (D)
H
A
d
L
D1



More
Info.
00300400950 22 5,00 48,00 4,80 85,50 29,50
00300400951 25 5,00 48,00 5,00 85,30 32,70
00300400952 28 5,00 48,00 5,00 85,30 35,80
00300400953 30 5,00 48,00 5,00 84,80 38,80
00300400954 32 5,00 48,00 4,80 84,80 41,00
00300400955 35 5,00 48,00 4,80 85,00 45,00
00300400956 38 5,00 48,00 4,80 85,70 48,00

If you are interested in our family LORS, you may be interested in these families as well:

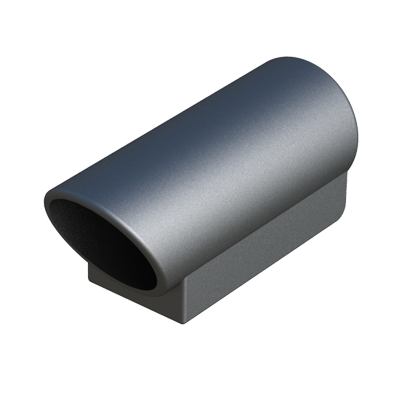

Our glider cap has a mounting for felt. The tube ferrule has been designed for round traverse ends. If you want the part with a base in felt or PP, please check our family LORS. If you are looking for a similar part but square, please consult our family LMH, for rectangular: LMHZ, and oval: LOO.
