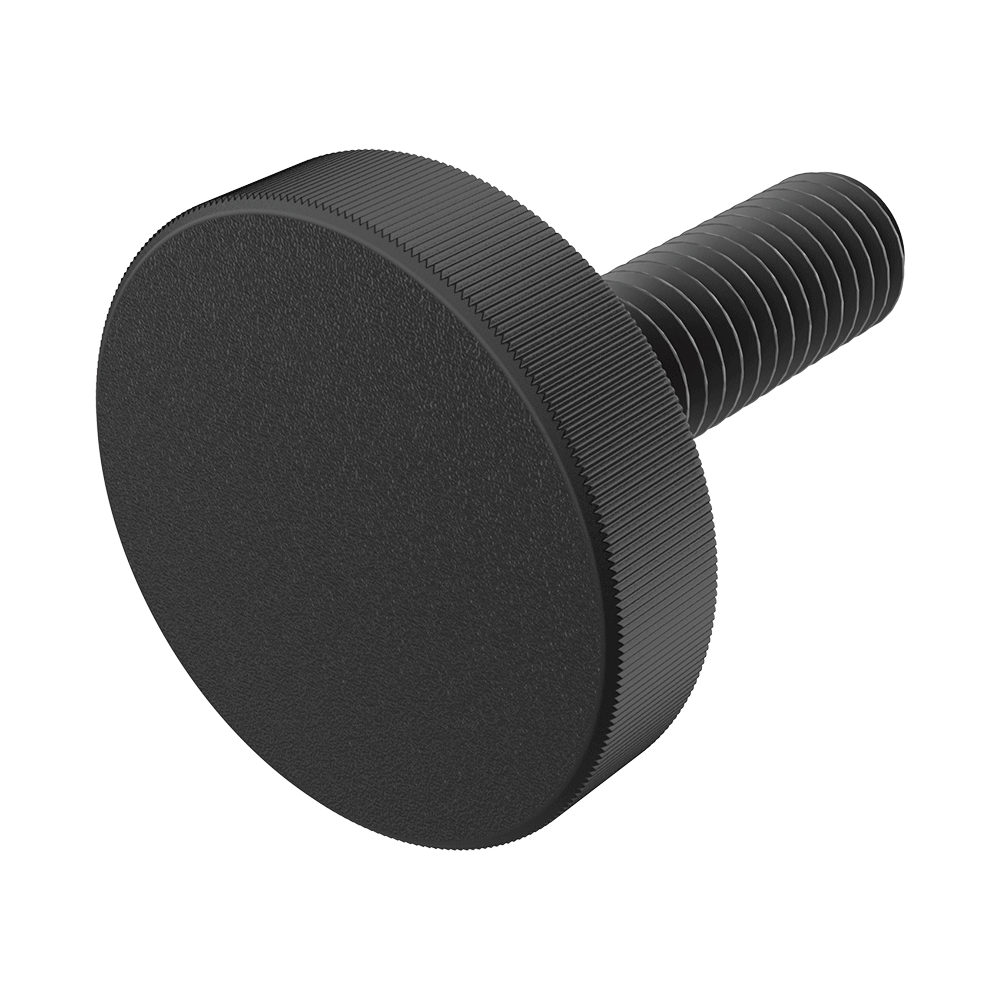

MTV screws are made of PA66, a high-quality technical material that combines excellent mechanical strength, good thermal stability, and adequate chemical resistance. They are a lightweight and reliable alternative to metal screws in multiple industrial applications.

Available in several colours (white, grey, black, and red).


Drawing PDF:
UL94:   V2*
IP:
RoHS:
Measures expressed in: Millimeters
Video:

MTV
MTV

Reference
Metric Thread
L
A
B
C



More
Info.
02900100001 M3 8,00 9,50 5,00 8,00
02900100002 M3 10,00 9,50 5,00 8,00
02900100003 M3 12,00 9,50 5,00 8,00
02900100004 M4 10,00 13,00 6,00 10,00
02900100005 M4 12,00 13,00 6,00 10,00
02900100006 M4 14,00 13,00 6,00 10,00
02900100007 M5 12,00 16,00 7,00 12,00
02900100008 M5 14,00 16,00 7,00 12,00
02900100009 M5 16,00 16,00 7,00 12,00
02900100010 M6 14,00 19,00 7,00 13,00
02900100013 M6 14,00 26,00 9,00 16,00
02900100011 M6 16,00 19,00 7,00 13,00
02900100014 M6 16,00 26,00 9,00 16,00
02900100016 M8 16,00 26,00 9,00 16,00
02900100012 M6 20,00 19,00 7,00 13,00
02900100015 M6 20,00 26,00 9,00 16,00
02900100017 M8 20,00 26,00 9,00 16,00
02900100018 M8 25,00 26,00 9,00 16,00

If you are interested in our family MTV, you may be interested in these families as well:

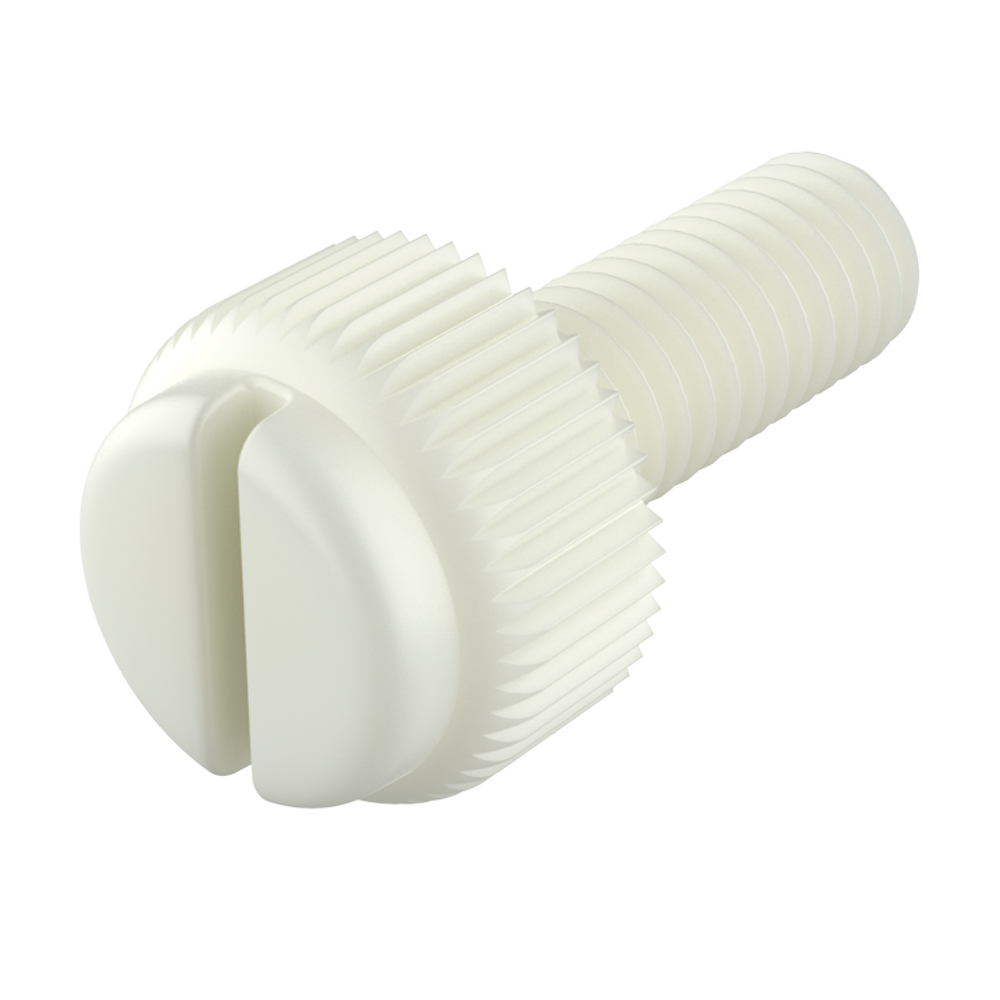

Our male knob has a knurled head. It is also available as a female knob: LHRM.   <p>MTCER screws are made of <strong>PA66</strong>, a high-quality technical thermoplastic that combines excellent mechanical strength, good thermal stability, and suitable chemical resistance. They are a lightweight and reliable alternative to metal screws in many industrial applications.</p> <p><strong>Main properties</strong><br> • <strong>Thermal:</strong> PA66 up to 100 °C<br> • <strong>Mechanical:</strong> high strength and good dimensional stability<br> • <strong>Chemical:</strong> good resistance to oils, greases, hydrocarbons, and common solvents</p> <p><strong>Advantages over metal screws</strong><br> • Lower weight without compromising strength<br> • Corrosion-proof, even in harsh environments<br> • Electrically and thermally insulating<br> • Non-magnetic, non-conductive, and spark-free<br> • Dampens vibrations and reduces noise<br> • Less maintenance and greater durability under adverse conditions</p> <p>Ideal for sectors such as electrical, electronics, automotive, construction, HVAC, and general industry.</p>   <p>Our <strong>TU</strong> washers are available in <strong>LDPE</strong>, <strong>PA6</strong>, <strong>PA66</strong>, and <strong>PA6GF30</strong>, offering lightweight, insulating, and durable solutions for various industrial sectors.</p> <h4>Materials and properties</h4> <ul style='margin-left:20px'> <li><strong>LDPE:</strong> up to 70 °C, flexible, insulating, resistant to mild agents.</li> <li><strong>PA6:</strong> up to 100 °C, good strength and thermal balance.</li> <li><strong>PA66:</strong> greater rigidity and dimensional stability.</li> <li><strong>PA6GF30:</strong> 30% glass fiber reinforced, excellent stiffness and heat resistance up to 130 °C.</li> </ul> <p>All materials provide good electrical insulation and chemical resistance to oils, greases, and common solvents. Ideal for electrical, mechanical, and insulation applications.</p>   <p>Our flanged washers <strong>TI</strong>, made of <strong>PA66</strong>, are designed to offer excellent mechanical, electrical, and thermal performance in demanding industrial applications.</p> <h4>PA66 Properties</h4> <ul style='margin-left:20px'> <li><strong>Thermal resistance:</strong> continuous use up to 100–110 °C</li> <li><strong>Mechanical strength:</strong> high rigidity, hardness, and dimensional stability</li> <li><strong>Electrical insulation:</strong> excellent dielectric behavior</li> <li><strong>Chemical resistance:</strong> good resistance to oils, greases, hydrocarbons, and common solvents</li> <li><strong>Durability:</strong> high wear resistance, low friction, and good aging resistance</li> </ul> <p><strong>PA66</strong> is a technical polyamide ideal for structural components that must be lightweight yet strong, with electrical insulation and reliable performance under thermal and chemical stress.</p>
