The MVCH hexagonal head screw are made of POM and have a very good finish. Various colors available.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

MVCH
MVCH

Reference
Suitable for
A
B
C



More
Info.
00100101000 M3 9,53 5,16 8,33
00100101005 M4 12,70 5,56 9,53
00100101011 M5 16,60 6,35 10,72
00100100999 M6 19,05 7,93 12,70
00100101017 M6 25,40 8,33 12,70
00100101028 M8 25,80 10,15 15,20

If you are interested in our family MVCH, you may be interested in these families as well:

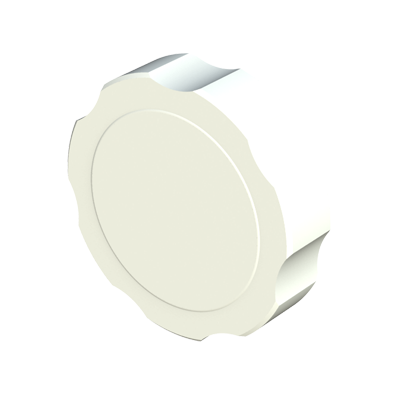

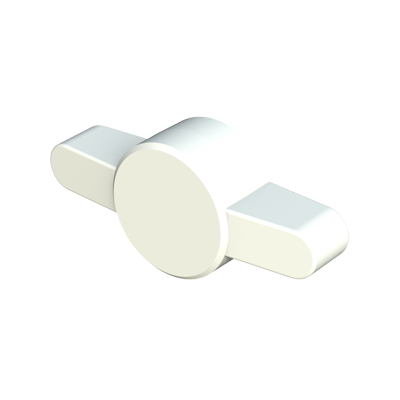

Our flowerette knobs are available in black, blue, red, green and white.   Our wing head knobs are available in black, blue, red, green and white.   <p>Our <strong>TU</strong> washers are available in <strong>LDPE</strong>, <strong>PA6</strong>, <strong>PA66</strong>, and <strong>PA6GF30</strong>, offering lightweight, insulating, and durable solutions for various industrial sectors.</p> <h4>Materials and properties</h4> <ul style='margin-left:20px'> <li><strong>LDPE:</strong> up to 70 °C, flexible, insulating, resistant to mild agents.</li> <li><strong>PA6:</strong> up to 100 °C, good strength and thermal balance.</li> <li><strong>PA66:</strong> greater rigidity and dimensional stability.</li> <li><strong>PA6GF30:</strong> 30% glass fiber reinforced, excellent stiffness and heat resistance up to 130 °C.</li> </ul> <p>All materials provide good electrical insulation and chemical resistance to oils, greases, and common solvents. Ideal for electrical, mechanical, and insulation applications.</p>   <p>Our flanged washers <strong>TI</strong>, made of <strong>PA66</strong>, are designed to offer excellent mechanical, electrical, and thermal performance in demanding industrial applications.</p> <h4>PA66 Properties</h4> <ul style='margin-left:20px'> <li><strong>Thermal resistance:</strong> continuous use up to 100–110 °C</li> <li><strong>Mechanical strength:</strong> high rigidity, hardness, and dimensional stability</li> <li><strong>Electrical insulation:</strong> excellent dielectric behavior</li> <li><strong>Chemical resistance:</strong> good resistance to oils, greases, hydrocarbons, and common solvents</li> <li><strong>Durability:</strong> high wear resistance, low friction, and good aging resistance</li> </ul> <p><strong>PA66</strong> is a technical polyamide ideal for structural components that must be lightweight yet strong, with electrical insulation and reliable performance under thermal and chemical stress.</p>
