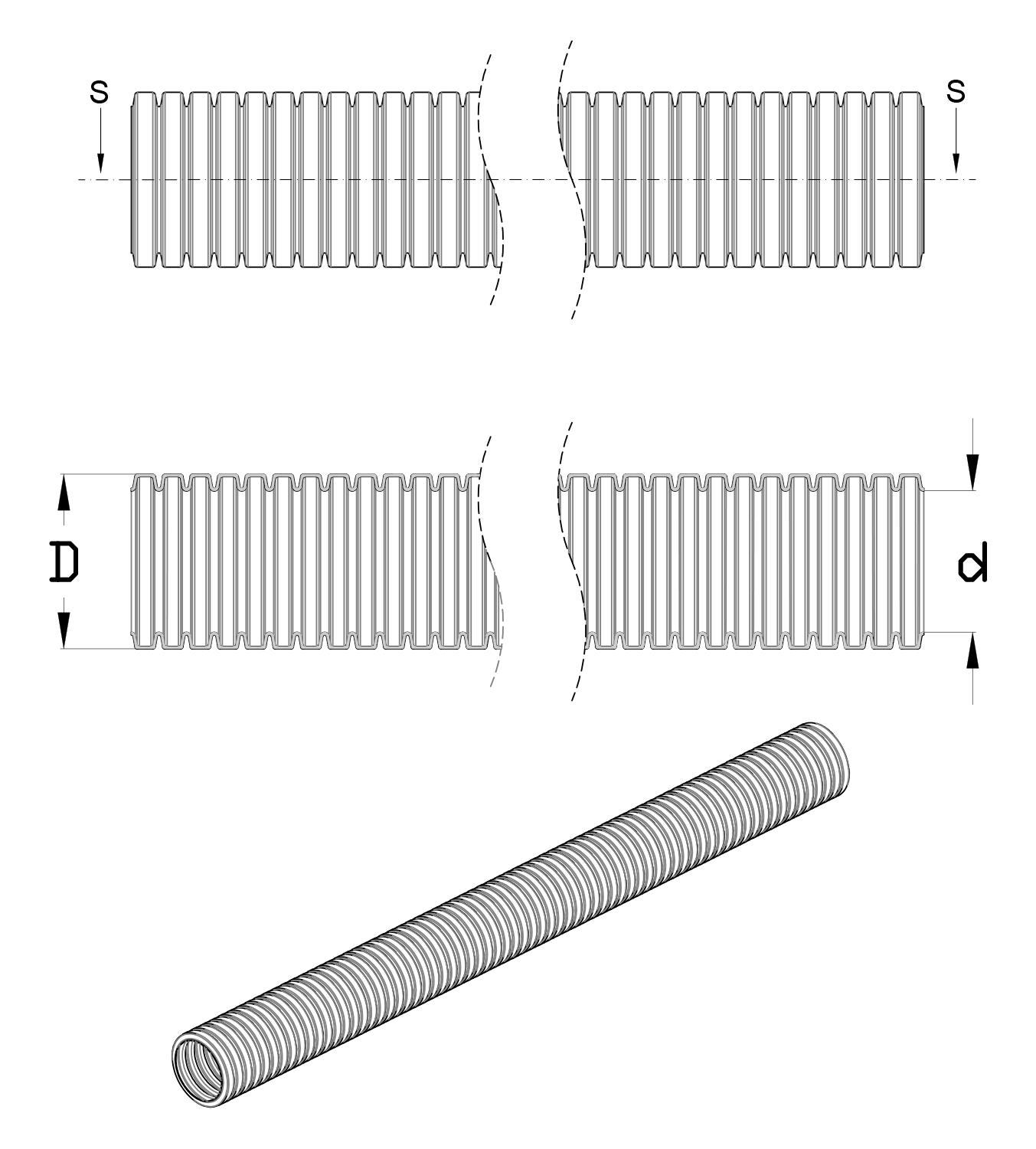

Our corrugated tube MPO is a thick-wall conduit made of modified polyolefin (PO), designed for electrical applications with medium and high mechanical resistance requirements, as well as flame-retardant behaviour.
Its structure combines robustness and flexibility, even with its reinforced thickness, allowing installation in demanding environments both indoors and outdoors, including concrete installations, walls, false ceilings, screeds and underground installations.
· Material: PO (modified polyolefin)
· Operating temperature: -15 °C / +105 °C
· Flammability: Flame-retardant
· Standards and certifications: VDE DIN EN 61386-22, Class 3-3-3-3-2 (compression resistance, impact resistance, min./max. temperature, bending behaviour)
· Characteristics: Resistance to oils, greases, alcohols and fuels. Compression resistance 750 N, impact resistance 2 kg, tensile strength > 26 MPa, elongation > 250%, modulus > 1300 MPa
· Supply and packaging: Unit length 1 meter, bulk supply without cuts, coils of 25, 50 or 100 meters depending on reference, special sizes on request.
Some references include an internal coating that facilitates cable pulling.
