Description and features

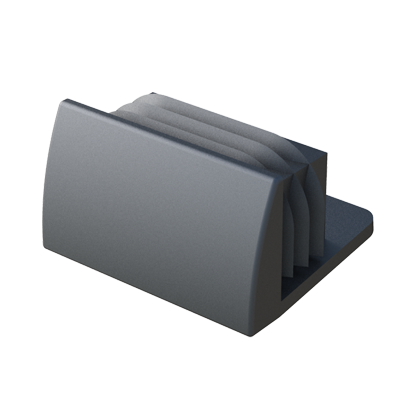

Our ribbed angle glider has been designed for rectangular traverse ends with a screw hole. If you want it without hole, please visit our family LMHZA. It is also available for square tube: LMH.
  RAL colors manufactured Part numbers and dimensions of Rectangular tube insert for end of traverses with a screw hole
| Reference | For Tube |
Tube Thickness |
D x B |
L |
l |
h |
d |
H |
More Info. |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00300400508 | 30 x 15 | 1,00 to 2,00 | 37,00 x 15,00 | 40,00 | 19,50 | 7,00 | 5,00 | 3,00 | |||||
| 00300400509 | 30 x 20 | 1,00 to 2,00 | 35,00 x 20,00 | 40,00 | 25,50 | 5,00 | 5,20 | 5,00 | |||||
| 00300400510 | 30 x 25 | 1,00 to 2,00 | 36,00 x 25,00 | 44,50 | 20,00 | 6,00 | 5,20 | 5,50 | |||||
| 00300400511 | 35 x 20 | 1,00 to 2,00 | 40,00 x 20,00 | 40,00 | 25,50 | 5,00 | 5,20 | 5,00 | |||||
| 00300400513 | 40 x 20 | 1,00 to 2,00 | 45,00 x 20,00 | 55,00 | 40,50 | 5,00 | 5,20 | 5,00 | |||||
| 00300400514 | 40 x 25 | 1,00 to 2,00 | 48,00 x 25,00 | 45,00 | 31,00 | 8,00 | 5,50 | 5,00 | |||||
| 00300400517 | 50 x 25 | 1,00 to 2,00 | 58,00 x 25,00 | 54,00 | 40,00 | 8,00 | 5,20 | 5,00 | |||||
| 00300400518 | 50 x 30 | 1,00 to 2,00 | 57,00 x 30,00 | 40,00 | 25,50 | 7,00 | 5,20 | 5,00 |
