This ratcheting action rivet features a rigid design which provides an outstanding bond created by the action of the interlocking gripper teeth. It garantees a rigid bond that will be difficult to separate. With the larger head diameters it makes binding of soft materials a simple application. For holding flat panels together, 2 parts are required, that would be snapped into each other. We suggest you to adjust the hole diameter to the rod of the part in order to garantee a resilient bond.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Hole size
Panel thickness
B
A



More
Info.
01300100820 5,50 5,40 to 7,00 5,30 10,00
00100300357 6,35 5,97 to 7,54 5,55 9,53
00100300360 6,35 6,00 to 7,50 5,50 15,88
00100300359 6,35 8,80 to 12,70 8,75 9,55
00100300361 6,35 8,79 to 12,70 8,73 15,88
00100300583 6,35 12,70 to 20,62 12,70 9,53
00100300585 6,35 12,70 to 20,62 12,70 15,88
00100300584 6,35 19,81 to 34,93 19,05 9,53
00100300586 6,35 19,81 to 34,93 19,30 15,90
00100300350 7,14 5,97 to 7,54 5,50 10,31
00100300342 7,14 5,97 to 7,54 5,50 19,05
00100300344 7,14 8,79 to 12,70 8,70 19,10
00100300352 7,14 8,79 to 12,70 8,73 10,31
00100300354 7,14 12,70 to 20,62 12,70 10,31
00100300346 7,14 12,70 to 20,62 12,70 19,05
00100300356 7,14 19,81 to 34,93 19,05 10,31
00100300348 7,14 19,81 to 34,93 19,05 19,05
01300100821 7,60 9,80 to 12,80 8,30 19,00
01300100822 7,60 13,50 to 16,50 12,00 19,00
01300100823 9,50 36,00 to 49,00 35,70 19,00
00100300362 11,10 11,10 to 19,05 11,10 34,93

If you are interested in our family MRMHB, you may be interested in these families as well:

      TU washers and spacers are used in a multitude of mechanical and insulation applications, whose manufacturing is carried out in various <b>engineering materials</b> that favor properties such as <i>chemical, mechanical, oxidation resistance, etc. .</i>, and are available in <b>PA</b> -Polyamide 6 and 66 (Nylon)-, <b>PP</b> -Polypropylene-, <b>POM</b> -Resin Acetal-, <b>PVDF</b> -Polyvinylidene Fluoride-, <b>PTFE</b> - Polytetrafluoroethylene (Teflon™)-, <b>PEEK</b> -Polyetheretherketone-, <b>LDPE</b> -Low Density Polyethylene- and <b>PAGF</b> -<i>Nylon with the possibility of up to 50% fiberglass-</i>.
<br>
We also supply upon request some measurements with an adhesive disc on both sides to fix and facilitate assembly during the installation process.
<br>

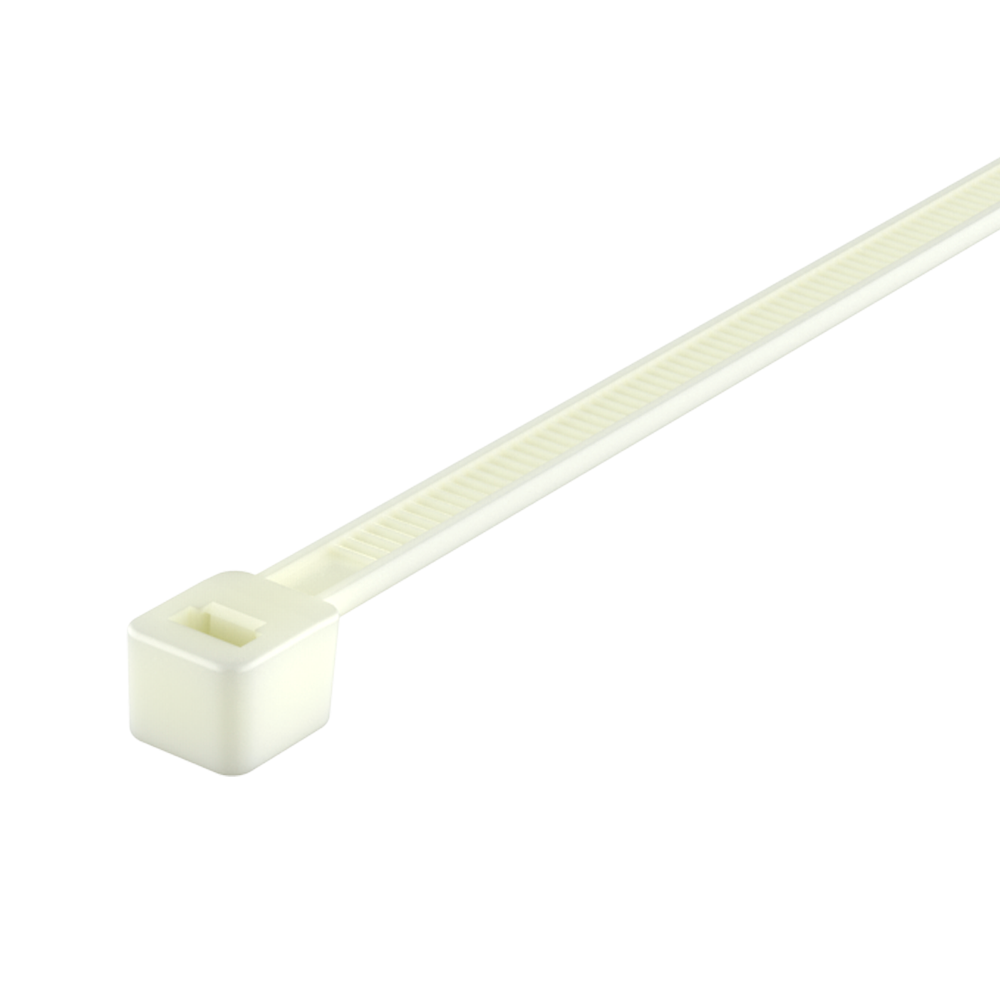

Contact us for more information and to check the availability of the references of your interest in the materials and colors indicated.   Our non reusable cable ties have been designed for cables, tubes, etc…
