Our external ferrule has been designed for oval traverse ends.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube (AxB)
H
L
d



More
Info.
00300400309 30 x 15 60,00 52,00 2,70
00300400310 35 x 20 60,00 52,00 2,70
00300400311 38 x 20 60,00 52,00 2,70
00300400312 40 x 20 60,00 52,00 2,70
00300400313 50 x 20 70,00 60,00 2,70 to 5,00
00300400314 50 x 25 70,00 60,00 2,70 to 5,00
00300400315 50 x 30 70,00 60,00 2,70 to 5,00
00300400316 60 x 30 70,00 60,00 2,70 to 5,00

If you are interested in our family LOO, you may be interested in these families as well:

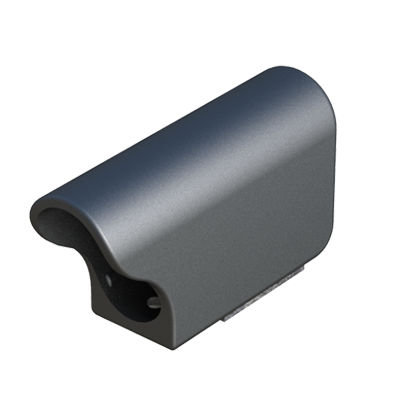

Our external glider for oval traverse ends is available with felt or polypropylene base. It is also available for round tubes: LORS.
