The membrane grommet is a revolutionary two-component grommet with cable anchorage (patented) fabricated with TPE/PA66. It is self adjusting to its surrounding and can be used with an exceptional range of cable and pipe diameters. Because of its design it only extends 5mm outside the housing on which it is mounted. The membrane remains until penetrated by a cable and even then beholds its IP65 Standard.

Drawing PDF:
UL94:   HB
IP:   65
Measures expressed in: Millimeters

Hole diameter (A)
Panel thickness (B)
For cable IP65
01601000001 20,50 / M20 2,00 to 5,00 7,00 to 11,00 17,00 to 20.00 5,50 4,00 29,30 to 34,50
01601000060 20,50 / M20 0,50 a 3,00 7,00 a 11,00 17,00 a 20,00 5,50 4,00 34,20 a 37,20
01601000002 25,50 / M25 2,00 to 5,00 7,00 to 13,00 17,00 to 20.00 5,50 5,00 34,30 to 40,00
01601000061 25,50 / M25 0,90 a 3,00 7,00 a 13,00 17,00 a 20,00 5,50 5,00 39,20 a 42,20

If you are interested in our family TKL, you may be interested in these families as well:

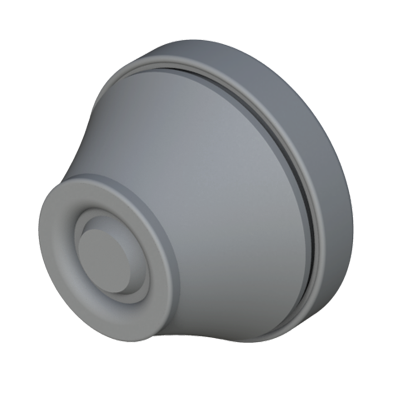

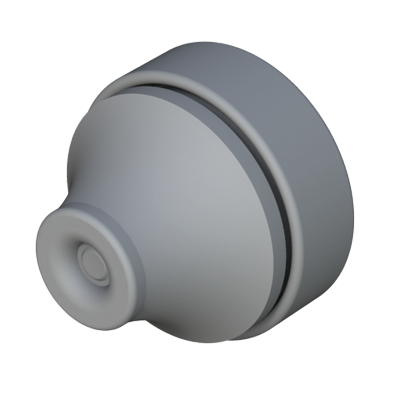

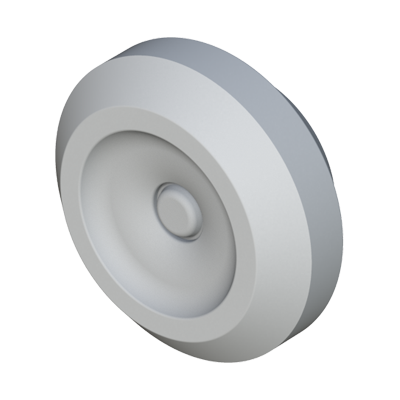

The membrane grommet handles an exceptional large cable span and is equipped with a pop-out membrane providing a wider range of applications than traditional membrane grommet. With the pop-out membrane you have a sealed cap but even after passing a cable you maintain a guaranteed IP67 standard. The grommet needs no further installation tools and works extremely well even if cables pass through at extreme angles.   The TRO membrane grommet is very simple to use and demands no tools. This part is approved within the standard IP67 in his components, internally as well as externally. The membrane grommet is resistant against water and most chemicals. The part is fabricated with two materials: EPDM and CR.   The membrane grommet looks pretty much like the TRO one but its design is flatter, which makes it lighter and easier to install (ideal for areas of difficult access). It is perfect for manufacturers of “strip lighting” as many other applications. For special colours, please consult us.
