Description and features
Our hose clamps provide a superior seal on hose or tubing through their patented and interlocking design by eliminating the leak path created by the overlapping ring design hose clamps. As interlocking grooves are ratcheted together , the sealing diameter of the fastener is aligned in parallel, creating a uniform clamping surface. Clamps may be removed by separating the clamping halves in a perpendicular direction at the seal. Clamps can be used in the following fields of application: appliance, electrical, electronic, R.V., boating and automotive. Installation tools for large series are available, see our groups MHAN and MHANZ (2 pneumatic models).
Possible to get dyed colors Product images and technical drawings

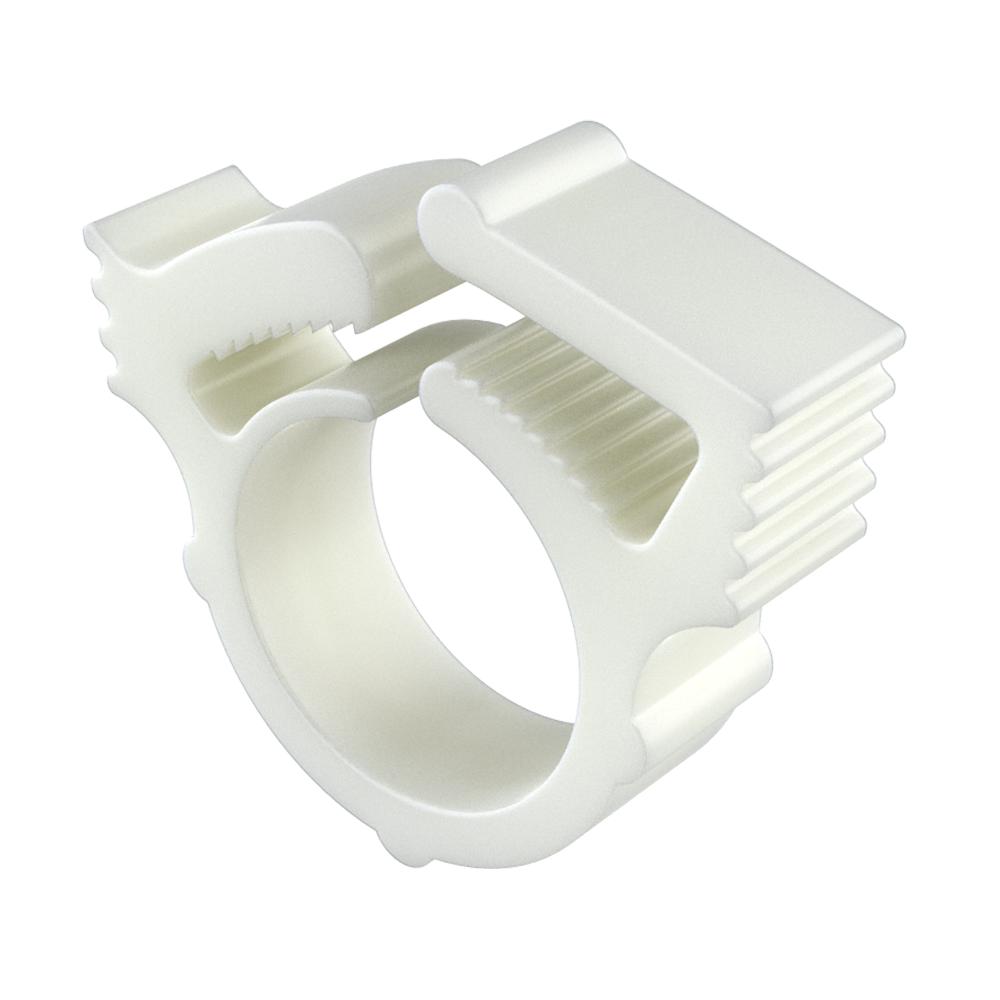

Product view
Technical drawing
Video
| 00101100027 | 6,25 | 7,37 | 5,56 | 1,19 | |||||||||
| 00101100028 | 7,62 | 8,89 | 5,56 | 1,59 | |||||||||
| 00101100029 | 9,14 | 10,31 | 5,56 | 1,59 | |||||||||
| 00101100030 | 10,41 | 11,89 | 6,35 | 1,59 | |||||||||
| 00101100031 | 12,07 | 13,61 | 5,56 | 1,59 | |||||||||
| 00101100032 | 13,67 | 15,44 | 6,35 | 1,59 | |||||||||
| 00101100033 | 15,16 | 16,89 | 6,35 | 1,59 | |||||||||
| 00101100034 | 17,02 | 19,81 | 5,56 | 1,59 | |||||||||
| 00101100035 | 18,54 | 21,08 | 5,56 | 1,59 | |||||||||
| 00101100211 | 19,05 | 22,23 | 5,49 | 1,57 | |||||||||
| 00101100036 | 22,10 | 24,77 | 5,56 | 1,59 | |||||||||
| 00101100037 | 24,21 | 27,76 | 6,50 | 1,70 | |||||||||
| 00101100038 | 26,19 | 30,15 | 7,94 | 1,59 | |||||||||
| 00101100039 | 31,75 | 36,20 | 7,80 | 1,80 | |||||||||
| 00101100040 | 35,71 | 40,89 | 8,73 | 1,59 | |||||||||
| 00101100041 | 40,46 | 46,02 | 8,73 | 1,59 | |||||||||
| 00101100042 | 45,47 | 53,59 | 8,73 | 1,59 | |||||||||
| 00101100043 | 47,50 | 53,98 | 10,32 | 1,59 | |||||||||
| 00101100044 | 53,85 | 60,71 | 10,32 | 1,59 |
