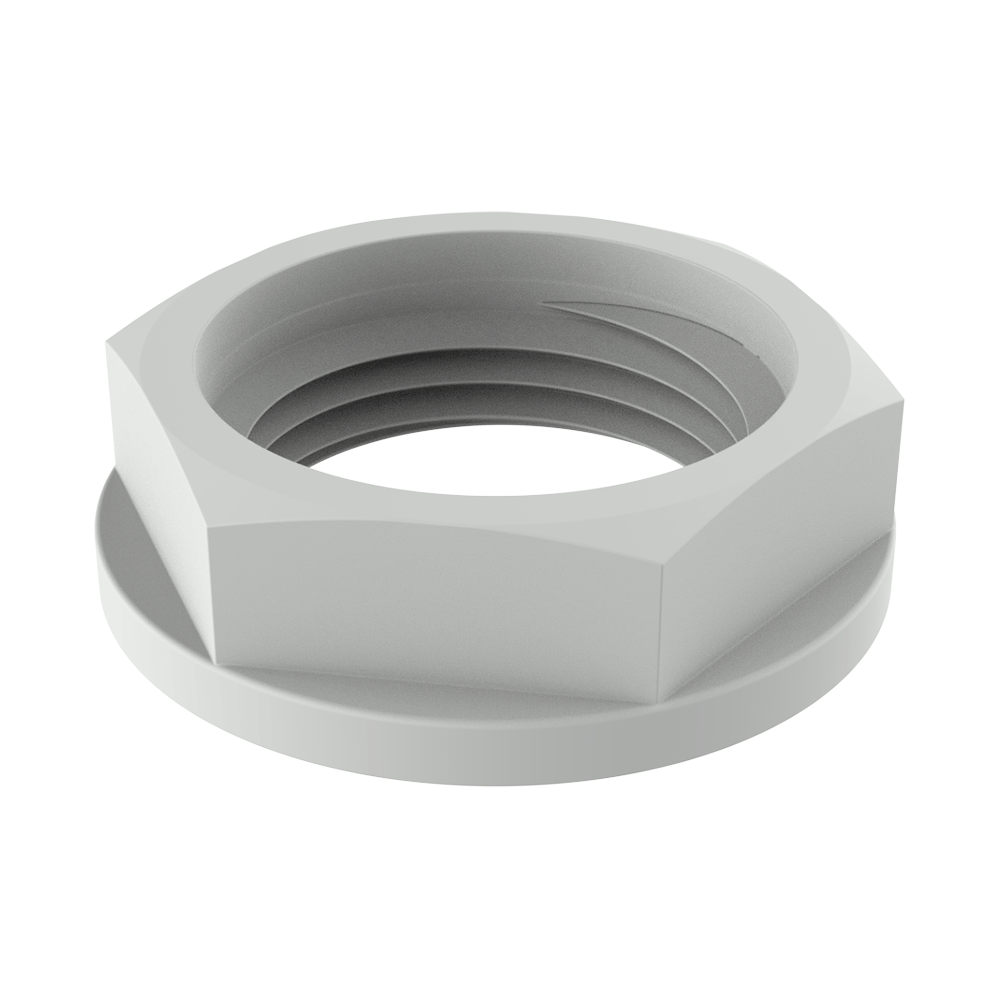

Our hexagon shaped lock nut has been designed to fit a variety of thread sizes, and to execute a big range of applications and to be used together with a cable gland. Nylon nuts are durable, non-conductive and resistant to corrosion.

Drawing PDF:
UL94:   HB
IP:
RoHS:
Measures expressed in: Millimeters
Video:

PRTUE
PRTUE

Reference
Suitable for
A
B



More
Info.
01500800061 M12 5,50 17,00
01500800062 M16 5,50 22,00
01500800063 M20 5,80 24,00
01500800064 M25 7,00 32,00
01500800065 M32 7,00 41,00
01500800066 M40 7,00 50,00
01500800067 M50 8,50 60,00
01500800068 M63 8,00 75,00
01500800051 PG 7 5,00 19,00
01500800052 PG 9 5,50 22,00
01500800053 PG 11 6,00 24,00
01500800054 PG 13,5 6,00 27,00
01500800055 PG 16 6,50 30,00
01500800056 PG 21 7,00 36,00
01500800057 PG 29 7,50 46,00
01500800058 PG 36 8,00 60,00
01500800059 PG 42 8,00 65,00
01500800060 PG 48 8,00 70,00

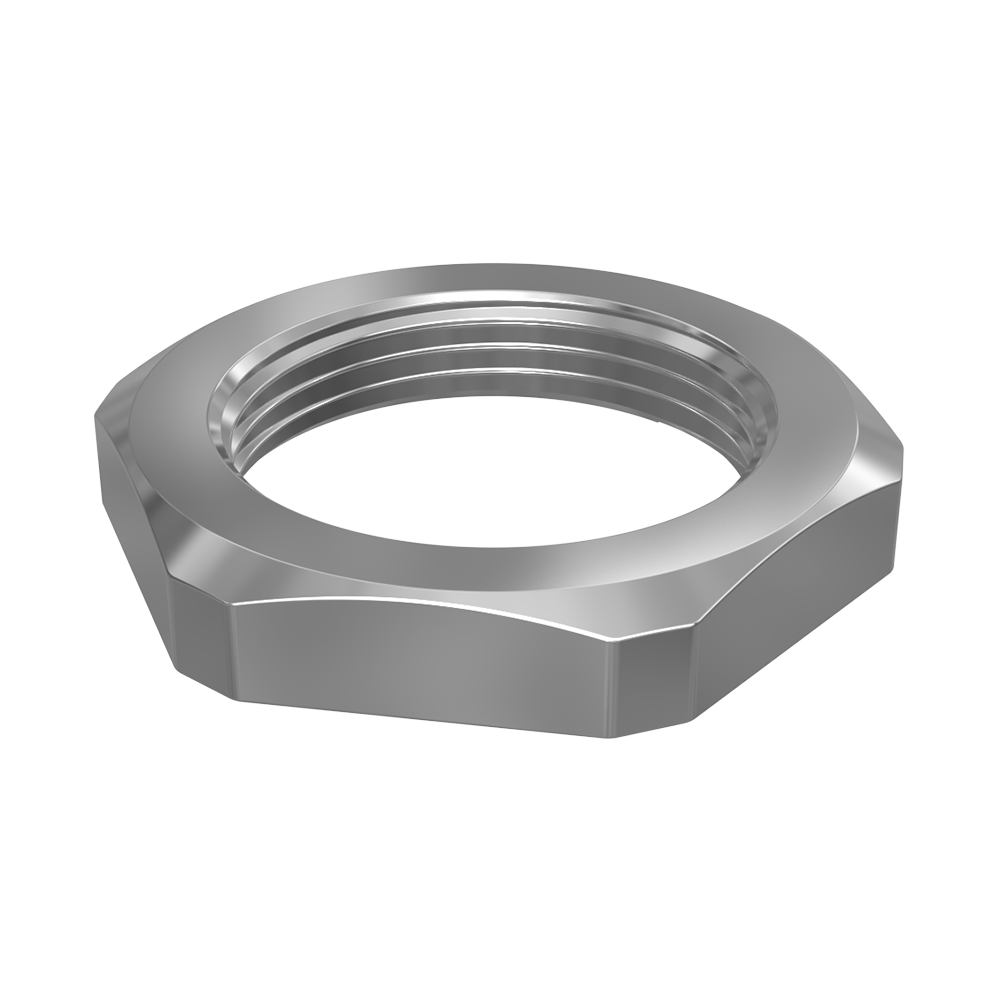

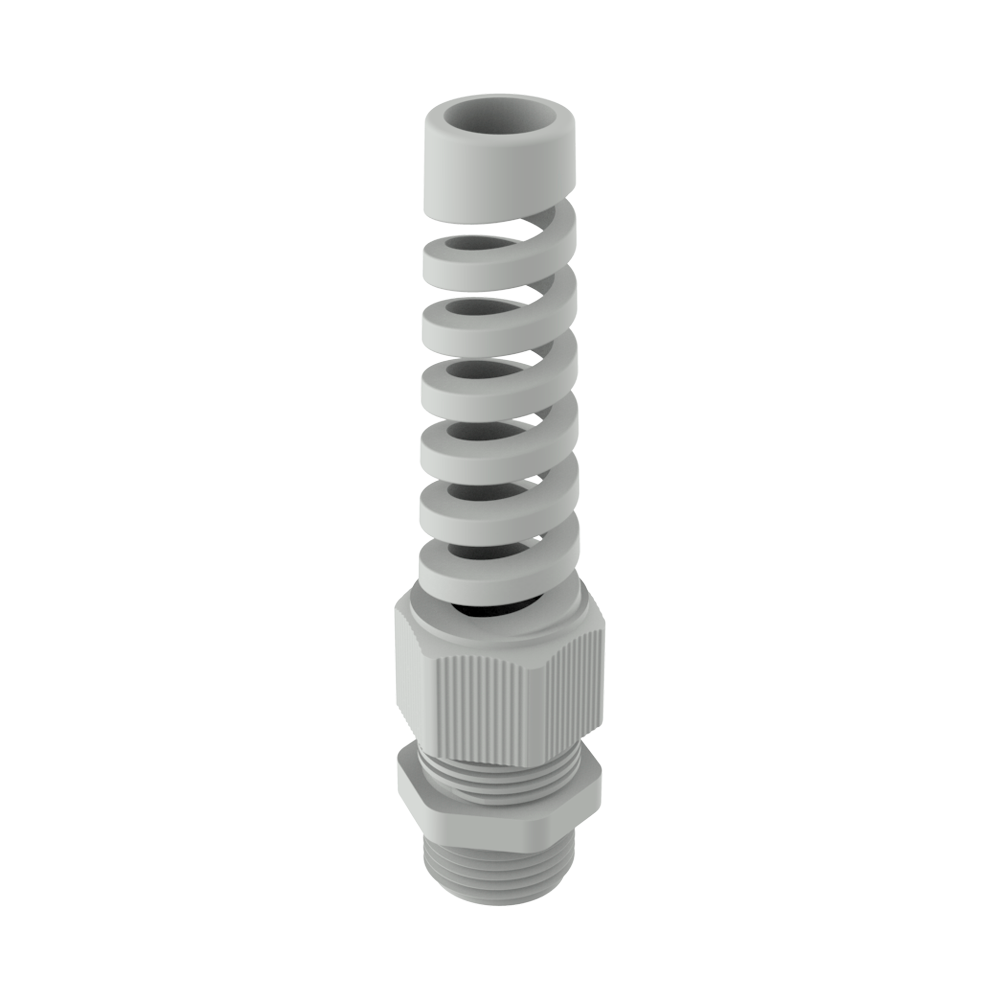

If you are interested in our family PRTUE, you may be interested in these families as well:
