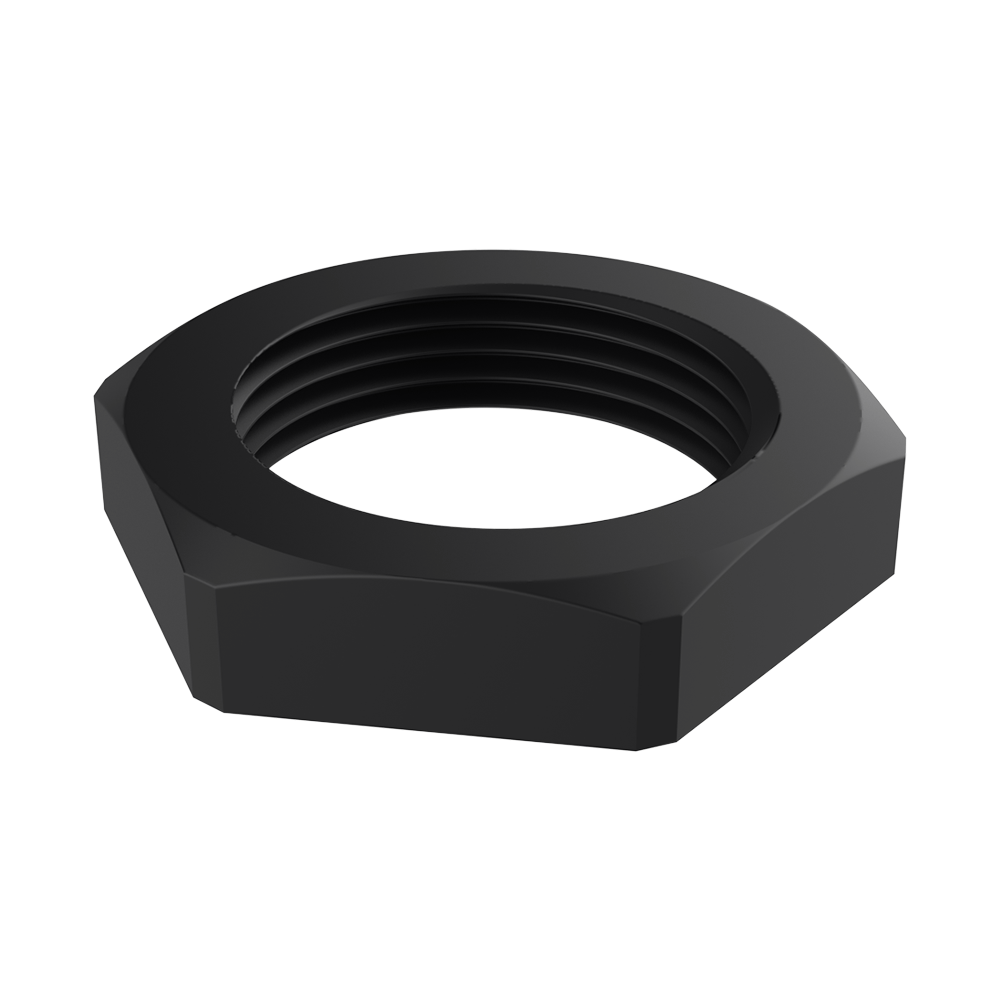

Our hexagon shaped lock nut with round sealing flange has been designed to fit a variety of thread sizes, and to execute a big range of applications and to be used together with a cable gland. Nylon nuts are durable, non-conductive and resistant to corrosion.

Drawing PDF:
UL94:   V0
IP:
RoHS:
Measures expressed in: Millimeters
Video:

PRTU
PRTU

Reference
Metric Thread
A
B



More
Info.
02001001501 M16 5,00 22,00
01500800048 M16 7,00 19,00
02001001502 M20 6,00 26,00
01500800049 M20 8,00 24,00
02001001503 M25 6,00 32,00
01500800050 M25 9,00 27,00
02001001510 PG11 5,00 24,00
02001001511 PG13,5 6,00 27,00
02001001512 PG16 6,00 30,00
