Our EBA sleeve is designed for bundling and protecting cables in electrical and mechanical installations, both fixed and with continuous movement. Its flexible design allows it to bend in any direction, extract cables at any point and be easily reused.

· Material: Polypropylene
· Available colours: Black, white, light grey, silver and orange
· Operating temperature: -30 °C to +85 °C (peaks up to +90 °C)
· Flammability: Self-extinguishing UL94-HB
· Halogen-free

The orange version is specially designed for applications in the electric mobility sector. High resistance to most solvents and chemical agents. Resistant to greases, mineral oils and petrol.

Each format includes a specific tool made of polypropylene to facilitate cable insertion. For further details, visit our MHEB family.

For diameters 15, 20 and 25 mm (except orange), 2-metre length available on request.


Drawing PDF:
UL94:   HB
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Nominal diameter
E
Maximum capacity



More
Info.
02010000226 8,00 0,80 10,00
02010000227 15,00 0,80 16,00
02010000228 20,00 0,90 23,00
02010000229 25,00 1,00 25,00
02010000230 32,00 1,30 32,00

If you are interested in our family EBA, you may be interested in these families as well:

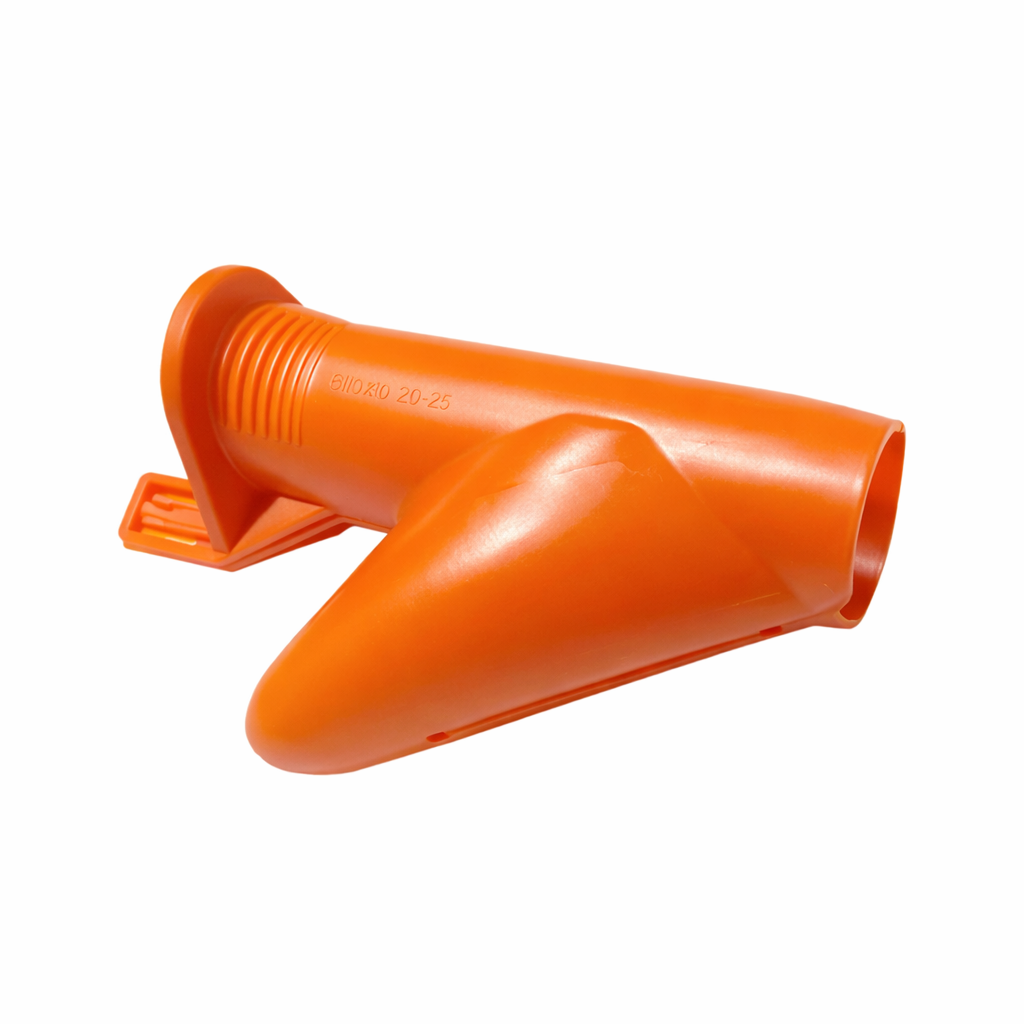

<p><b>Manual tool</b> designed to facilitate the installation of the <b><a href='https://www.isc-sl.com/flexible-cable-organizer/eba/'>EBA</a></b> spiral protector, allowing quick, safe, and uniform insertion of cables, tubes, and conductors into the sheath.</p>
