Product images and technical drawings

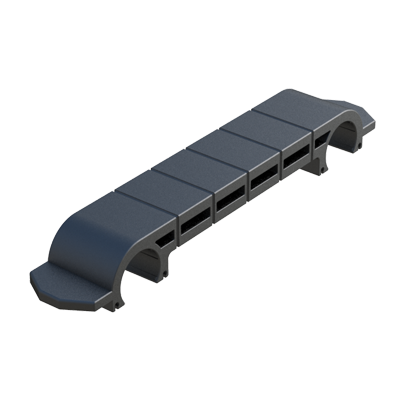

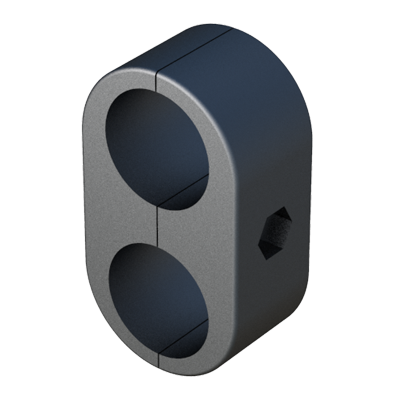

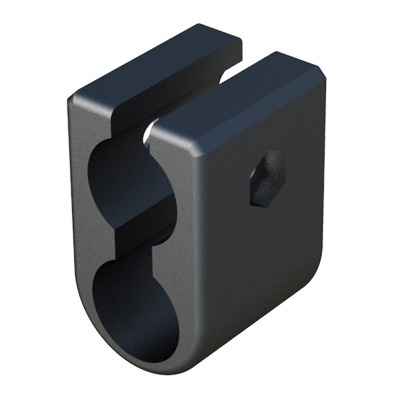

Product view
Technical drawing
Video
Part numbers and dimensions of Clamp for a doble tube
| Reference | For Tube |
L |
H / B |
Nut Spot (SW) / Metric (M) |
More Info. |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00200100060 | 6 | 15,60 | 32,00 / 12,00 | M6 | |||||||||
| 00200100061 | 8 | 17,00 | 35,20 / 12,00 | M6 | |||||||||
| 00200100062 | 10 | 20,00 | 40,00 / 12,00 | M6 | |||||||||
| 00200100063 | 12 | 23,20 | 44,50 / 13,70 | M6 | |||||||||
| 00200100064 | 14 to 15 | 27,00 | 52,00 / 14,00 | M6 | |||||||||
| 00200100065 | 16 to 18 | 32,00 | 59,00 / 16,00 | M6 | |||||||||
| 00200100066 | 20 to 22 | 35,00 | 68,00 / 17,40 | M6 | |||||||||
| 00200100067 | 28 | 42,75 | 82,00 / 20,10 | M6 |
