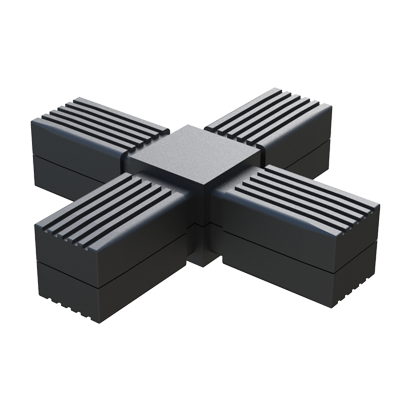

Our 4-way connector has been designed in order to connect square tubes. It is supplied without internal metal core.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L
H



More
Info.
02300400212 13,50 x 13,50 1,25 20,00 13,00
02300900174 20 x 20 1,50 32,00 20,00
02300900175 25 x 25 1,50 49,00 25,00
02300900176 25 x 25 2,00 40,00 25,00
02300900162 30 x 30 1,50 50,00 30,00
02300900169 40 x 40 2,00 55,00 40,00

If you are interested in our family THCXB, you may be interested in these families as well:

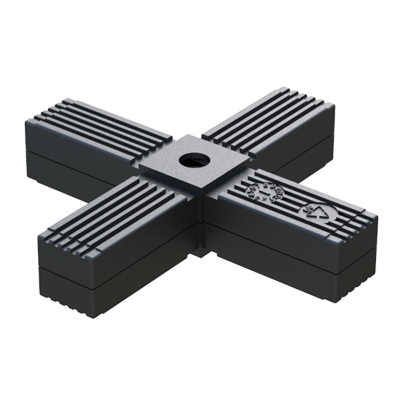

Our 4-way connector has been designed in order to connect square tubes. It is supplied without internal metal core or with the internal core in steel, stainless steel or in zinc coated steel.   Our 4-way connector has been designed for square tubes. It is supplied with an internal metal core.   Our hinge 4-way connector has been designed for square tubes. It has an angle which goes from 45º to 200º.   Our 5-way connector has been designed for square tubes.
