Our 3-way connector has been designed in order to connect square tubes. It is supplied without internal metal core.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L
H



More
Info.
02300400048 13,50 x 13,50 1,25 20,00 13,00
02301001100 20 x 20 1,50 32,00 20,00
02300400058 25 x 25 1,50 49,00 25,00
02300400801 25 x 25 2,00 40,00 25,00
02300900163 30 x 30 1,50 50,00 30,00
02300900170 40 x 40 2,00 55,00 40,00

If you are interested in our family THCYF, you may be interested in these families as well:

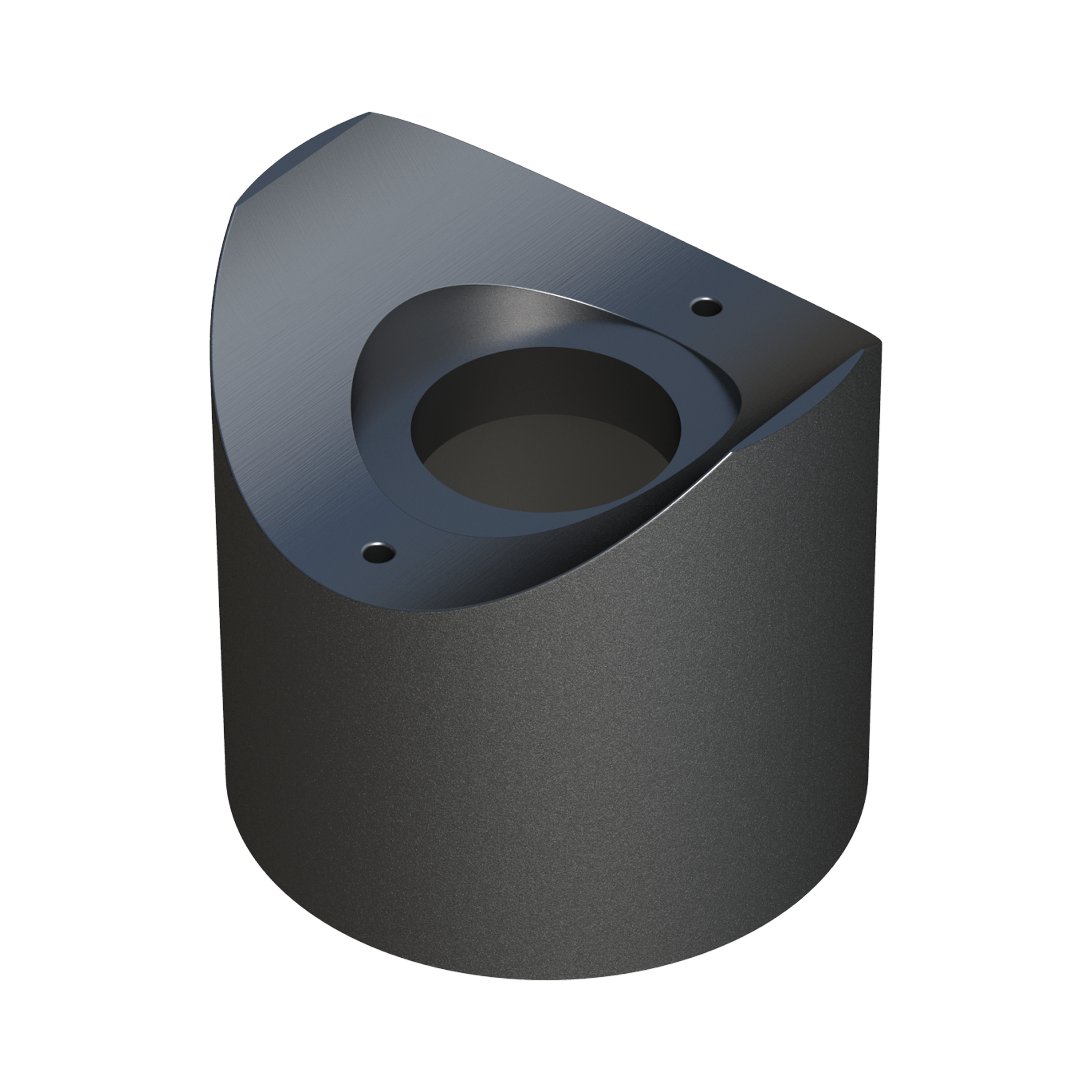

This saddle washer is used for connecting round tubes from 18 to 81 mm to a flat surface. All references with a height (H) equal to or greater than 5mm have a cavity (ØD1 x h), where you can accommodate the screw heads, washers and / or distance elements. If you need to connect several tubes, please visit our group : Connectors.   Our hinge 3-way connector has been designed in order to connect square tubes. It has an angle which goes from 60º to 300º.   Our hinge 3-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º, or from 0º to 180º, or from 0º to 60º, or from 45º to 195º, depending on the reference.   Our 3-way connector has been designed to connect square tubes. It is supplied with or without internal metal core. This connector has a rounded external part which gives a good finish.
