Description and features

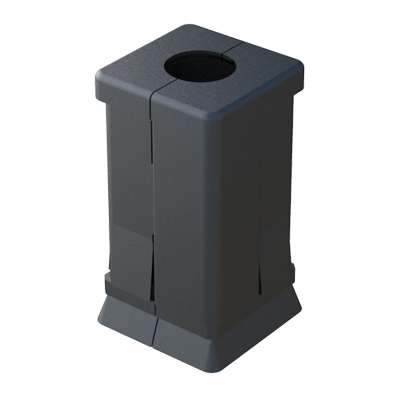

Our connector for square tubes has been designed with 2 cavities for hexagonal nuts. We can supply the part without nuts, or with a nut up, or one nut down, or with the 2 nuts. Please consult us.Product images and technical drawings
Product view
Technical drawing
Video
Part numbers and dimensions of 2 tubes insert-connector with nut cavities and invisible union
| Reference | For Tube |
Tube Thickness |
L |
H1 / H2 |
Metric (M1 / M2) |
More Info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02300400255 | 25 x 25 | 1,50 | 35,00 | 12,50 / 7,00 | SW 13 / SW 10 |
