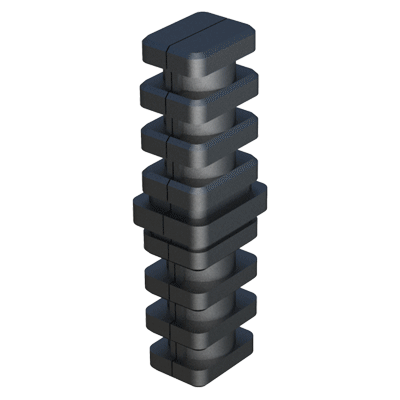

Part numbers and dimensions of 2 tubes angle connector with a cavity for metal core and visible union
| Reference | For Tube |
Tube Thickness |
L |
Angle (A) |
More Info. |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02300400201 | 30 x 15 | 1,00 | 29,00 | 135º | |||||||||
| 02300400193 | 40 x 20 | 2,00 | 52,00 | 150º | |||||||||
| 02300400202 | 50 x 20 | 1,00 | 30,00 | 135º |
